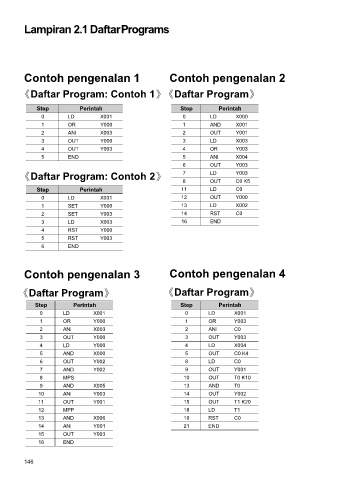

Lampiran 2.1 Daftar Programs

Contoh pengenalan 1 Contoh pengenalan 2

Daftar Program: Contoh 1 Daftar Program

Step Perintah Step Perintah
0 LD X001 0 LD X000
1 OR Y000 1 AND X001
2 ANI X003 2 OUT Y001
3 OUT Y000 3 LD X003
4 OUT Y003 4 OR Y003
5 END 5 ANI X004
6 OUT Y003
Daftar Program: Contoh 2 7 LD Y003
8 OUT C0 K5
Step Perintah 11 LD C0
0 LD X001 12 OUT Y000
1 SET Y000 13 LD X002
2 SET Y003 14 RST C0
3 LD X003 16 END
4 RST Y000
5 RST Y003

6 END

Contoh pengenalan 3 Contoh pengenalan 4

Daftar Program Daftar Program

Step Perintah Step Perintah
0 LD X001 0 LD X001
1 OR Y000 1 OR Y003
2 ANI X003 2 ANI C0
3 OUT Y000 3 OUT Y003
4 LD Y000 4 LD X004
5 AND X000 5 OUT C0 K4
6 OUT Y002 8 LD C0
7 AND Y002 9 OUT Y001
8 MPS 10 OUT T0 K10
9 AND X005 13 AND T0
10 ANI Y003 14 OUT Y002
11 OUT Y001 15 OUT T1 K20
12 MPP 18 LD T1
13 AND X006 19 RST C0
14 ANI Y001 21 END
15 OUT Y003
16 END

146
