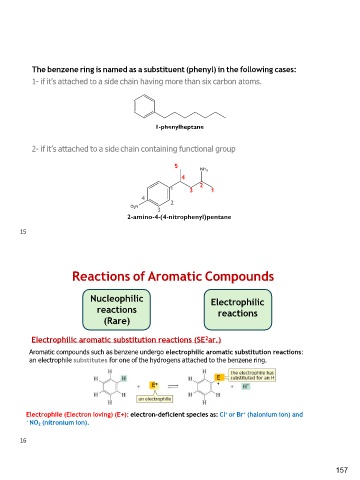

Page 159 - Pharm.Org.Chem-I 02-06-05-101
P. 159

The benzene ring is named as a substituent (phenyl) in the following cases:
    1- if it’s attached to a side chain having more than six carbon atoms.

    2- if it’s attached to a side chain containing functional group

                        5

                           4

                     1             2
                              31

    42

                  3

15

    Reactions of Aromatic Compounds

    Nucleophilic              Electrophilic
      reactions                 reactions
        (Rare)

    Electrophilic aromatic substitution reactions (SE2ar.)

    Aromatic compounds such as benzene undergo electrophilic aromatic substitution reactions:
    an electrophile substitutes for one of the hydrogens attached to the benzene ring.

                                      E

  Electrophile (Electron loving) (E+): electron-deficient species as: Cl+ or Br+ (halonium ion) and
  + NO2 (nitronium ion).

16
