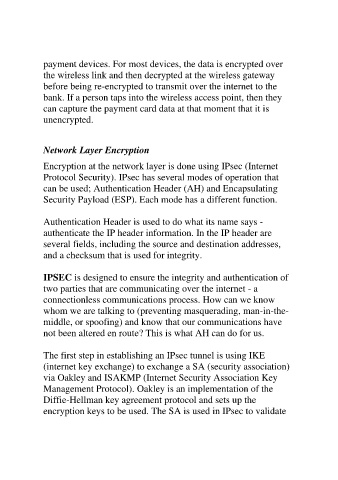

Page 198 - CISSO_Prep_ Guide

payment devices. For most devices, the data is encrypted over
the wireless link and then decrypted at the wireless gateway
before being re-encrypted to transmit over the internet to the
bank. If a person taps into the wireless access point, then they
can capture the payment card data at that moment that it is
unencrypted.

Network Layer Encryption

Encryption at the network layer is done using IPsec (Internet
Protocol Security). IPsec has several modes of operation that
can be used; Authentication Header (AH) and Encapsulating
Security Payload (ESP). Each mode has a different function.

Authentication Header is used to do what its name says -
authenticate the IP header information. In the IP header are
several fields, including the source and destination addresses,
and a checksum that is used for integrity.

IPSEC is designed to ensure the integrity and authentication of
two parties that are communicating over the internet - a
connectionless communications process. How can we know
whom we are talking to (preventing masquerading, man-in-the-
middle, or spoofing) and know that our communications have
not been altered en route? This is what AH can do for us.

The first step in establishing an IPsec tunnel is using IKE
(internet key exchange) to exchange a SA (security association)
via Oakley and ISAKMP (Internet Security Association Key
Management Protocol). Oakley is an implementation of the
Diffie-Hellman key agreement protocol and sets up the
encryption keys to be used. The SA is used in IPsec to validate
