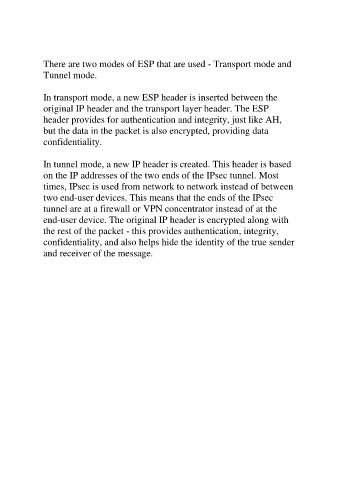

There are two modes of ESP that are used - Transport mode and
Tunnel mode.

In transport mode, a new ESP header is inserted between the
original IP header and the transport layer header. The ESP
header provides for authentication and integrity, just like AH,
but the data in the packet is also encrypted, providing data
confidentiality.

In tunnel mode, a new IP header is created. This header is based
on the IP addresses of the two ends of the IPsec tunnel. Most
times, IPsec is used from network to network instead of between
two end-user devices. This means that the ends of the IPsec
tunnel are at a firewall or VPN concentrator instead of at the
end-user device. The original IP header is encrypted along with
the rest of the packet - this provides authentication, integrity,
confidentiality, and also helps hide the identity of the true sender
and receiver of the message.
