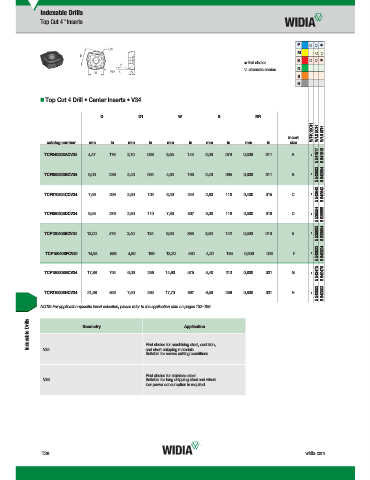

Page 1542 - Master Catalog 2017, Inch

Indexable Drills
Top Cut 4 Inserts
™

P
M
K
first choice
alternate choice N
S
H

„ Top Cut 4 Drill • Center Inserts • V34

D D1 W S RR
WPK10CH WU25CH WU40PH
insert
catalog number mm in mm in mm in mm in mm in size

TCF040203ACV34 4,47 .176 2,10 .083 3,65 .144 2,00 .079 0,300 .011 A – 5541817 5541818

5542602 – 5542604
TCF060203BCV34 6,00 .236 2,40 .094 4,90 .193 2,40 .095 0,300 .011 B

TCF070304CCV34 7,59 .299 2,60 .102 6,20 .244 2,80 .110 0,400 .015 C – 5542642 5542643

5538554 – 5538555
TCF090305DCV34 9,55 .376 2,80 .110 7,80 .307 3,00 .118 0,500 .019 D

TCF120405ECV34 12,00 .473 3,40 .134 9,80 .386 3,60 .142 0,500 .019 E – 5538603 5538604

TCF150406FCV34 14,94 .588 4,80 .189 12,20 .480 4,20 .165 0,600 .023 F – 5542623 5542624

5542475 – 5542476
TCF180508GCV34 17,88 .704 6,00 .236 14,60 .575 5,40 .213 0,800 .031 G

TCF210608HCV34 21,68 .853 7,50 .295 17,70 .697 6,50 .256 0,800 .031 H – 5542002 5542003
NOTE: For application-specific insert selection, please refer to the application data on pages T32–T55.

Indexable Drills Geometry First choice for machining steel, cast iron,
Application

V34
and short chipping materials.
Suitable for severe cutting conditions.

First choice for stainless steel.
V36 Suitable for long chipping steel and where
low power consumption is required.

T28 widia.com
