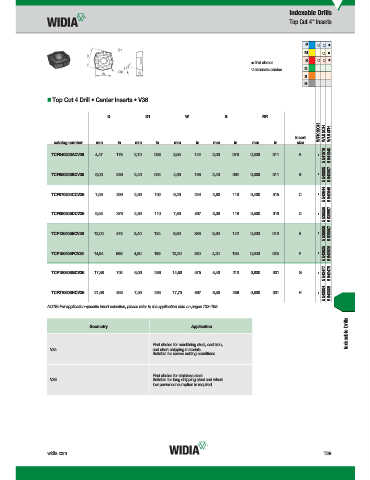

Page 1543 - Master Catalog 2017, Inch

Indexable Drills
Top Cut 4 Inserts
™

P
M
K
first choice
alternate choice N
S
H

„ Top Cut 4 Drill • Center Inserts • V36

D D1 W S RR
WPK10CH WU25CH WU40PH
insert
catalog number mm in mm in mm in mm in mm in size

TCF040203ACV36 4,47 .176 2,10 .083 3,65 .144 2,00 .079 0,300 .011 A – 5541819 5541840

5542606 – 5542607
TCF060203BCV36 6,00 .236 2,40 .094 4,90 .193 2,40 .094 0,300 .011 B

TCF070304CCV36 7,59 .299 2,60 .102 6,20 .244 2,80 .110 0,400 .015 C – 5542644 5542645

5538556 – 5538557
TCF090305DCV36 9,55 .376 2,80 .110 7,80 .307 3,00 .118 0,500 .019 D

TCF120405ECV36 12,00 .473 3,40 .134 9,80 .386 3,60 .142 0,500 .019 E – 5538606 5538607

TCF150406FCV36 14,94 .588 4,80 .189 12,20 .480 4,20 .165 0,600 .023 F – 5542625 5542626

5542477 – 5542478
TCF180508GCV36 17,88 .704 6,00 .236 14,60 .575 5,40 .213 0,800 .031 G

TCF210608HCV36 21,68 .853 7,50 .295 17,70 .697 6,50 .256 0,800 .031 H – 5542004 5542005
NOTE: For application-specific insert selection, please refer to the application data on pages T32–T55.

Indexable Drills
Geometry Application

First choice for machining steel, cast iron,
V34 and short chipping materials.
Suitable for severe cutting conditions.

First choice for stainless steel.
V36 Suitable for long chipping steel and where
low power consumption is required.

widia.com T29
