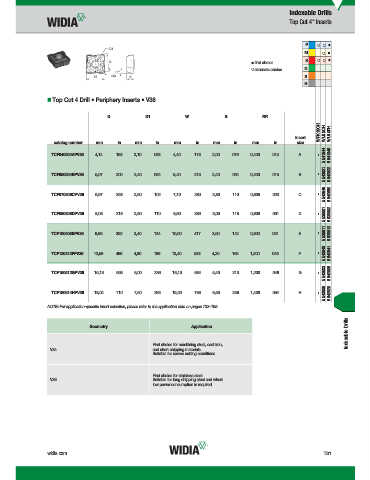

Page 1545 - Master Catalog 2017, Inch

Indexable Drills
Top Cut 4 Inserts
™

P
M
K
first choice
alternate choice N
S
H

„ Top Cut 4 Drill • Periphery Inserts • V36

D D1 W S RR
WPK10CH WU25CH WU40PH
insert
catalog number mm in mm in mm in mm in mm in size

TCF040204APV36 4,14 .163 2,10 .083 4,40 .173 2,00 .079 0,400 .015 A – 5541844 5541845

5542621 – 5542622
TCF050204BPV36 5,07 .200 2,40 .094 5,40 .213 2,40 .094 0,400 .015 B

TCF070306CPV36 6,67 .263 2,60 .102 7,10 .280 2,80 .110 0,600 .023 C – 5542649 5542650

5538601 – 5538602
TCF080308DPV36 8,08 .318 2,80 .110 8,60 .339 3,00 .118 0,800 .031 D

TCF100408EPV36 9,96 .392 3,40 .134 10,60 .417 3,60 .142 0,800 .031 E – 5538611 5538612

TCF120412FPV36 12,59 .496 4,80 .189 13,40 .528 4,20 .165 1,200 .046 F – 5542640 5542641

5542603 – 5542605
TCF150512GPV36 15,13 .596 6,00 .236 16,10 .634 5,40 .213 1,200 .046 G

TCF180614HPV36 18,04 .710 7,50 .295 19,20 .756 6,50 .256 1,400 .054 H – 5542009 5542020
NOTE: For application-specific insert selection, please refer to the application data on pages T32–T55.

Indexable Drills
Geometry Application

First choice for machining steel, cast iron,
V34 and short chipping materials.
Suitable for severe cutting conditions.

First choice for stainless steel.
V36 Suitable for long chipping steel and where
low power consumption is required.

widia.com T31
