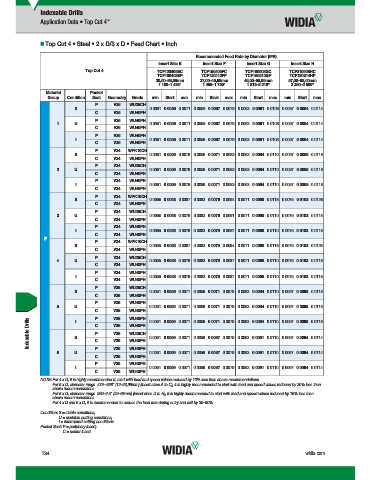

Page 1548 - Master Catalog 2017, Inch

Indexable Drills
Application Data • Top Cut 4 ™

„ Top Cut 4 • Steel • 2 x D/3 x D • Feed Chart • Inch

Recommended Feed Rate by Diameter (IPR)
Insert Size E Insert Size F Insert Size G Insert Size H
Top Cut 4 TCF120405EC TCF150406FC TCF180508GC TCF210608HC
TCF100408EP TCF120412FP TCF150512GP TCF180614HP
30,00–36,99mm 37,00–45,99mm 46,00–56,99mm 57,00–68,00mm
1.188–1.438" 1.469–1.750" 1.813–2.219" 2.250–2.500"
Material Pocket
Group Condition Seat Geometry Grade min Start max min Start max min Start max min Start max
P V36 WU25CH
S 0.0051 0.0055 0.0071 0.0059 0.0067 0.0079 0.0063 0.0091 0.0106 0.0067 0.0094 0.0114
C V36 WU40PH
P V36 WU40PH
1 U 0.0051 0.0055 0.0071 0.0059 0.0067 0.0079 0.0063 0.0091 0.0106 0.0067 0.0094 0.0114
C V36 WU40PH
P V36 WU40PH
I 0.0051 0.0055 0.0071 0.0059 0.0067 0.0079 0.0063 0.0091 0.0106 0.0067 0.0094 0.0114
C V36 WU40PH
P V34 WPK10CH
S 0.0051 0.0059 0.0079 0.0059 0.0071 0.0083 0.0063 0.0094 0.0110 0.0067 0.0098 0.0118
C V34 WU40PH
P V34 WU25CH
2 U 0.0051 0.0059 0.0079 0.0059 0.0071 0.0083 0.0063 0.0094 0.0110 0.0067 0.0098 0.0118
C V34 WU40PH
P V34 WU40PH
I 0.0051 0.0059 0.0079 0.0059 0.0071 0.0083 0.0063 0.0094 0.0110 0.0067 0.0098 0.0118
C V34 WU40PH
P V34 WPK10CH
S 0.0055 0.0063 0.0087 0.0063 0.0079 0.0094 0.0071 0.0098 0.0118 0.0075 0.0102 0.0126
C V34 WU40PH
P V34 WU25CH
3 U 0.0055 0.0063 0.0079 0.0063 0.0079 0.0091 0.0071 0.0098 0.0110 0.0075 0.0102 0.0118
C V34 WU40PH
P V34 WU40PH
I 0.0055 0.0063 0.0079 0.0063 0.0079 0.0087 0.0071 0.0098 0.0110 0.0075 0.0102 0.0118
C V34 WU40PH
P
P V34 WPK10CH
S 0.0055 0.0063 0.0087 0.0063 0.0079 0.0094 0.0071 0.0098 0.0118 0.0075 0.0102 0.0126
C V34 WU40PH
P V34 WU25CH
4 U 0.0055 0.0063 0.0079 0.0063 0.0079 0.0087 0.0071 0.0098 0.0110 0.0075 0.0102 0.0118
C V34 WU40PH
P V34 WU40PH
I 0.0055 0.0063 0.0079 0.0063 0.0079 0.0087 0.0071 0.0098 0.0110 0.0075 0.0102 0.0118
C V34 WU40PH
P V36 WU25CH
S 0.0051 0.0059 0.0071 0.0059 0.0071 0.0079 0.0063 0.0094 0.0110 0.0067 0.0098 0.0118
C V36 WU40PH
P V36 WU40PH
5 U 0.0051 0.0059 0.0071 0.0059 0.0071 0.0079 0.0063 0.0094 0.0110 0.0067 0.0098 0.0118
C V36 WU40PH
Indexable Drills S I C V36 WU25CH 0.0051 0.0059 0.0071 0.0059 0.0071 0.0079 0.0063 0.0094 0.0110 0.0067 0.0098 0.0118
WU40PH
P
V36
WU40PH
P
V36
0.0051 0.0059 0.0071 0.0059 0.0067 0.0079 0.0063 0.0091 0.0110 0.0067 0.0094 0.0114
C
V36
WU40PH
P V36 WU40PH
6 U 0.0051 0.0059 0.0071 0.0059 0.0067 0.0079 0.0063 0.0091 0.0110 0.0067 0.0094 0.0114
C V36 WU40PH
P V36 WU40PH
I 0.0051 0.0059 0.0071 0.0059 0.0067 0.0079 0.0063 0.0091 0.0110 0.0067 0.0094 0.0114
C V36 WU40PH
NOTE: For 4 x D, it is highly recommended to start with feed and speed values reduced by 10% less than above recommendations.
For 5 x D, diameter range .473–.938" (12–23,99mm) (insert sizes A to C), it is highly recommended to start with feed and speed values reduced by 20% less than
above recommendations.
For 5 x D, diameter range .969–2.5" (24–68mm) (insert sizes D to H), it is highly recommended to start with feed and speed values reduced by 15% less than
above recommendations.
For 4 x D and 5 x D, it is recommended to reduce the feed rate during entry and exit by 30–50%.
Condition: S = stable conditions;
U = unstable cutting conditions;
I = interrupted cutting conditions
Pocket Seat: P = periphery insert;
C = center insert
