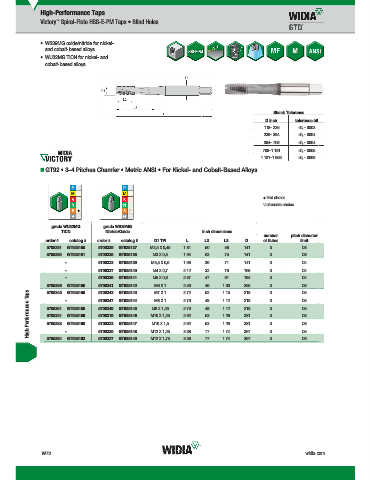

Page 1770 - Master Catalog 2017, Inch

High-Performance Taps
Victory Spiral-Flute HSS-E-PM Taps • Blind Holes
™

• WS39MG oxide/nitride for nickel-

and cobalt-based alloys.

• WU32MG TiCN for nickel- and
cobalt-based alloys.

Shank Tolerance
D inch tolerance h6
.118–.236 +0, -.0003
.236–.394 +0, -.0004
.394–.709 +0, -.0004
.709–1.181 +0, -.0005
1.181–1.969 +0, -.0006
„ GT92 • 3–4 Pitches Chamfer • Metric ANSI • For Nickel- and Cobalt-Based Alloys

first choice
alternate choice

WU32MG
WS39MG
grade WU32MG grade WS39MG
TiCN Nitride/Oxide inch dimensions
number pitch diameter
order # catalog # order # catalog # D1 TPI L L3 L2 D of flutes limit
5708331 GT925150 5708329 GT925137 M2,5 X 0,45 1.81 .50 .56 .141 3 D3
5705285 GT925151 5708335 GT925138 M3 X 0,5 1.94 .63 .75 .141 3 D3
– 5708333 GT925139 M3,5 X 0,6 1.99 .36 .71 .141 3 D4
– 5708337 GT925140 M4 X 0,7 2.12 .32 .76 .168 3 D4
– 5708339 GT925141 M5 X 0,8 2.37 .47 .91 .194 3 D4
5705286 GT925155 5708341 GT925142 M6 X 1 2.50 .46 1.00 .255 3 3 D5
High-Performance Taps 5708361 GT925158 5708347 GT925144 M10 X 1,25 2.70 .48 1.12 .318 3 3 3 3 D5
.52
2.72
M7 X 1
1.15
D5
5708345 GT925156
.318
5708343 GT925143
M8 X 1
–
2.70
1.12
5708349 GT925145
D5
.318
.48
M8 X 1,25
.53
.381
1.26
2.92
5708321 GT925159
D5
5708319 GT925146
D6
M10 X 1,5
5705283 GT925160
.381
2.92
.53
5708323 GT925147
1.26
–
5705284 GT925162 5708325 GT925148 M12 X 1,25 3.38 .77 1.74 .367 3 3 D5
D6
.77
1.74
3.38
M12 X 1,75
5708327 GT925149
.367
