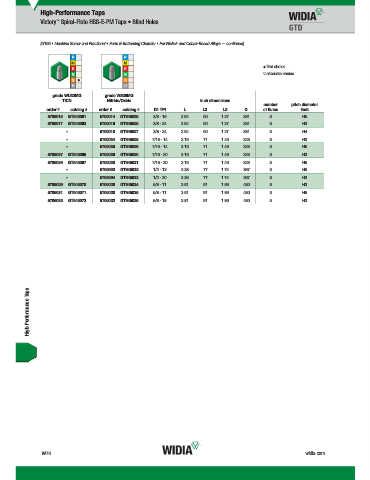

Page 1772 - Master Catalog 2017, Inch

High-Performance Taps
Victory Spiral-Flute HSS-E-PM Taps • Blind Holes
™

(GT94 • Machine Screw and Fractional • Form E Bottoming Chamfer • For Nickel- and Cobalt-Based Alloys — continued)

first choice
alternate choice

grade WU32MG grade WS39MG
WS39MG
WU32MG
TiCN Nitride/Oxide inch dimensions
number pitch diameter
order # catalog # order # catalog # D1 TPI L L3 L2 D of flutes limit
5706015 GT945061 5706014 GT945025 3/8 - 16 2.94 .60 1.27 .381 3 H5
5706017 GT945062 5706016 GT945026 3/8 - 24 2.94 .60 1.27 .381 3 H3
– 5706018 GT945027 3/8 - 24 2.94 .60 1.27 .381 3 H4
– 5706034 GT945028 7/16 - 14 3.16 .71 1.49 .323 3 H3
– 5706035 GT945029 7/16 - 14 3.16 .71 1.49 .323 3 H5
5706037 GT945066 5706036 GT945030 7/16 - 20 3.16 .71 1.49 .323 3 H3
5706039 GT945067 5706038 GT945031 7/16 - 20 3.16 .71 1.49 .323 3 H5
– 5705993 GT945032 1/2 - 13 3.38 .77 1.74 .367 3 H5
– 5705994 GT945033 1/2 - 20 3.38 .77 1.74 .367 3 H3
5706029 GT945070 5706028 GT945034 5/8 - 11 3.81 .91 1.89 .480 3 H3
5706031 GT945071 5706030 GT945035 5/8 - 11 3.81 .91 1.89 .480 3 H5
5706033 GT945072 5706032 GT945036 5/8 - 18 3.81 .91 1.89 .480 3 H3

High-Performance Taps

W74 widia.com
