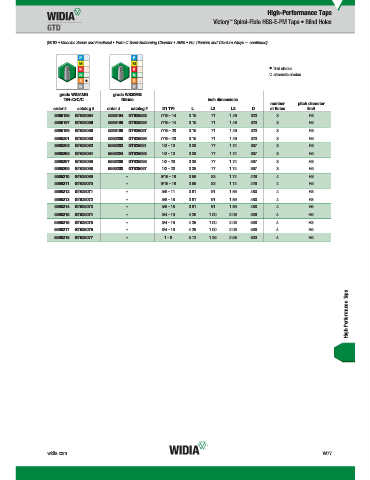

Page 1775 - Master Catalog 2017, Inch

High-Performance Taps
Victory Spiral-Flute HSS-E-PM Taps • Blind Holes
™

(GT62 • Machine Screw and Fractional • Form C Semi-Bottoming Chamfer • ANSI • For Titanium and Titanium Alloys — continued)

first choice
alternate choice

grade WS34MG grade WS30MG
WS34MG
WS30MG
TiN+CrC/C Nitride inch dimensions
number pitch diameter
order # catalog # order # catalog # D1 TPI L L3 L2 D of flutes limit
5565195 GT625054 5565194 GT625053 7/16 - 14 3.16 .71 1.49 .323 3 H3
5565197 GT625056 5565196 GT625055 7/16 - 14 3.16 .71 1.49 .323 3 H5
5565199 GT625058 5565198 GT625057 7/16 - 20 3.16 .71 1.49 .323 3 H3
5565201 GT625060 5565200 GT625059 7/16 - 20 3.16 .71 1.49 .323 3 H5
5565203 GT625062 5565202 GT625061 1/2 - 13 3.38 .77 1.74 .367 3 H3
5565205 GT625064 5565204 GT625063 1/2 - 13 3.38 .77 1.74 .367 3 H5
5565207 GT625066 5565206 GT625065 1/2 - 20 3.38 .77 1.74 .367 3 H3
5565209 GT625068 5565208 GT625067 1/2 - 20 3.38 .77 1.74 .367 3 H5
5565210 GT625069 – 9/16 - 18 3.59 .83 1.74 .429 4 H3
5565211 GT625070 – 9/16 - 18 3.59 .83 1.74 .429 4 H5
5565212 GT625071 – 5/8 - 11 3.81 .91 1.89 .480 4 H3
5565213 GT625072 – 5/8 - 18 3.81 .91 1.89 .480 4 H3
5565214 GT625073 – 5/8 - 18 3.81 .91 1.89 .480 4 H5
5565215 GT625074 – 3/4 - 10 4.25 1.00 2.08 .590 4 H5
5565216 GT625075 – 3/4 - 16 4.25 1.00 2.08 .590 4 H3
5565217 GT625076 – 3/4 - 16 4.25 1.00 2.08 .590 4 H5
5565218 GT625077 – 1 - 8 5.12 1.25 2.58 .800 4 H5

High-Performance Taps

widia.com W77
