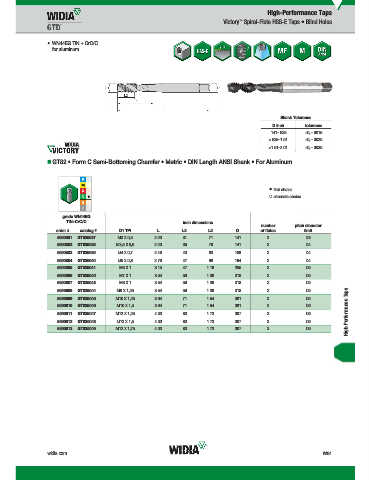

Page 1779 - Master Catalog 2017, Inch

High-Performance Taps
Victory Spiral-Flute HSS-E Taps • Blind Holes
™

• WN44EG TiN + CrC/C

for aluminum.

Shank Tolerance
D inch tolerance
.141–.635 +0, -.0015
>.635–1.51 +0, -.0020
>1.51–2.01 +0, -.0030

„ GT82 • Form C Semi-Bottoming Chamfer • Metric • DIN Length ANSI Shank • For Aluminum

first choice
alternate choice

grade WN44EG
WN44EG
TiN+CrC/C inch dimensions
number pitch diameter
order # catalog # D1 TPI L L3 L2 D of flutes limit
5690801 GT825037 M3 X 0,5 2.20 .31 .71 .141 2 D3
5690802 GT825038 M3,5 X 0,6 2.20 .35 .79 .141 2 D4
5690803 GT825039 M4 X 0,7 2.48 .43 .83 .168 2 D4
5690804 GT825040 M5 X 0,8 2.76 .47 .98 .194 2 D4
5690805 GT825041 M6 X 1 3.15 .47 1.18 .255 2 D5
5690806 GT825042 M7 X 1 3.54 .59 1.38 .318 2 D5
5690807 GT825043 M8 X 1 3.54 .59 1.38 .318 2 D5
High-Performance Taps
5690808 GT825044 M8 X 1,25 3.54 .59 1.38 .318 2 D5
5690809 GT825045 M10 X 1,25 3.94 .71 1.54 .381 2 D5
5690810 GT825046 M10 X 1,5 3.94 .71 1.54 .381 2 D6
5690811 GT825047 M12 X 1,25 4.33 .83 1.73 .367 3 D6
5690812 GT825048 M12 X 1,5 4.33 .83 1.73 .367 3 D6
5690813 GT825049 M12 X 1,75 4.33 .83 1.73 .367 3 D6

widia.com W81
