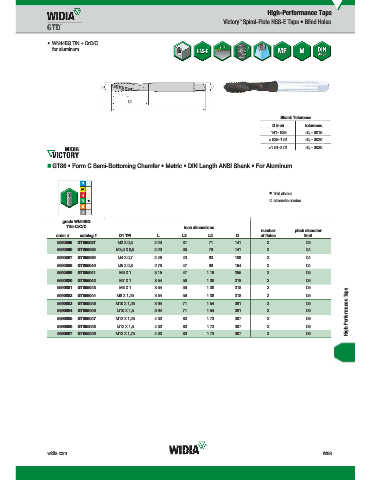

Page 1781 - Master Catalog 2017, Inch

High-Performance Taps
Victory Spiral-Flute HSS-E Taps • Blind Holes
™

• WN44EG TiN + CrC/C

for aluminum.

Shank Tolerance
D inch tolerance
.141–.635 +0, -.0015
>.635–1.51 +0, -.0020
>1.51–2.01 +0, -.0030

„ GT86 • Form C Semi-Bottoming Chamfer • Metric • DIN Length ANSI Shank • For Aluminum

first choice
alternate choice

WN44EG
grade WN44EG
TiN+CrC/C inch dimensions
number pitch diameter
order # catalog # D1 TPI L L3 L2 D of flutes limit
5690865 GT865037 M3 X 0,5 2.20 .31 .71 .141 3 D3
5690866 GT865038 M3,5 X 0,6 2.20 .35 .79 .141 3 D4
5690867 GT865039 M4 X 0,7 2.48 .43 .83 .168 3 D4
5690868 GT865040 M5 X 0,8 2.76 .47 .98 .194 3 D4
5690869 GT865041 M6 X 1 3.15 .47 1.18 .255 3 D5
5690880 GT865042 M7 X 1 3.54 .59 1.38 .318 3 D5
5690881 GT865043 M8 X 1 3.54 .59 1.38 .318 3 D5
High-Performance Taps
5690882 GT865044 M8 X 1,25 3.54 .59 1.38 .318 3 D5
5690883 GT865045 M10 X 1,25 3.94 .71 1.54 .381 3 D5
5690884 GT865046 M10 X 1,5 3.94 .71 1.54 .381 3 D6
5690885 GT865047 M12 X 1,25 4.33 .83 1.73 .367 3 D6
5690886 GT865048 M12 X 1,5 4.33 .83 1.73 .367 3 D6
5690887 GT865049 M12 X 1,75 4.33 .83 1.73 .367 3 D6

widia.com W83
