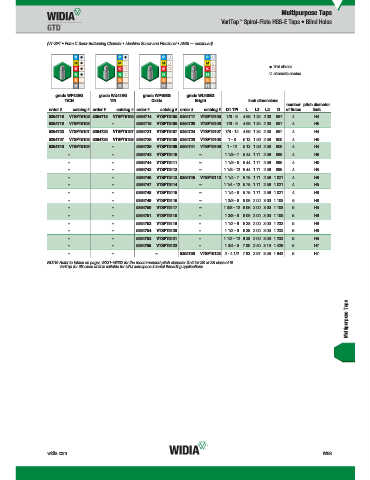

Page 1787 - Master Catalog 2017, Inch

Multipurpose Taps
™
VariTap Spiral-Flute HSS-E Taps • Blind Holes

(VT-SFT • Form C Semi-Bottoming Chamfer • Machine Screw and Fractional • ANSI — continued)

first choice
alternate choice

WU41EG
grade WP42EG grade WU41EG grade WP49EG grade WU40EG
WP42EG
WU40EG
WP49EG
TiCN TiN Oxide Bright inch dimensions
number pitch diameter
order # catalog # order # catalog # order # catalog # order # catalog # D1 TPI L L3 L2 D of flutes limit
5364716 VTSFT5105 5364715 VTSFT5105 5364714 VTSFT5105 5364717 VTSFT5105 7/8 - 9 4.69 1.34 2.30 .697 4 H4
5364719 VTSFT5106 – 5364718 VTSFT5106 5364720 VTSFT5106 7/8 - 9 4.69 1.34 2.30 .697 4 H5
5364723 VTSFT5107 5364722 VTSFT5107 5364721 VTSFT5107 5364724 VTSFT5107 7/8 - 14 4.69 1.34 2.30 .697 4 H4
5364727 VTSFT5108 5364725 VTSFT5108 5364726 VTSFT5108 5364728 VTSFT5108 1 - 8 5.13 1.50 2.58 .800 4 H5
5364740 VTSFT5109 – 5364729 VTSFT5109 5364741 VTSFT5109 1 - 12 5.13 1.50 2.58 .800 4 H4
– – 5364742 VTSFT5110 – 1 1/8 - 7 5.44 1.71 2.56 .896 4 H6
– – 5364744 VTSFT5111 – 1 1/8 - 8 5.44 1.71 2.56 .896 4 H6
– – 5364743 VTSFT5112 – 1 1/8 - 12 5.44 1.71 2.56 .896 4 H5
– – 5364746 VTSFT5113 5364745 VTSFT5113 1 1/4 - 7 5.75 1.71 2.56 1.021 4 H6
– – 5364747 VTSFT5114 – 1 1/4 - 12 5.75 1.71 2.56 1.021 4 H5
– – 5364748 VTSFT5115 – 1 1/4 - 8 5.75 1.71 2.56 1.021 4 H6
– – 5364749 VTSFT5116 – 1 3/8 - 6 6.06 2.00 3.00 1.108 5 H6
– – 5364750 VTSFT5117 – 1 3/8 - 12 6.06 2.00 3.00 1.108 5 H5
– – 5364751 VTSFT5118 – 1 3/8 - 8 6.06 2.00 3.00 1.108 5 H6
– – 5364752 VTSFT5119 – 1 1/2 - 6 6.38 2.00 3.00 1.233 5 H6
– – 5364754 VTSFT5120 – 1 1/2 - 8 6.38 2.00 3.00 1.233 5 H6
– – 5364753 VTSFT5121 – 1 1/2 - 12 6.38 2.00 3.00 1.233 5 H5
– – 5364755 VTSFT5122 – 1 3/4 - 5 7.00 2.40 3.19 1.429 5 H7
– – – 5364756 VTSFT5123 2 - 4 1/2 7.63 2.67 3.56 1.643 5 H7
NOTE: Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 2B or 3B class of fit.
VariTap for 3B class of fit is suitable for UNJ aerospace internal threading applications.
