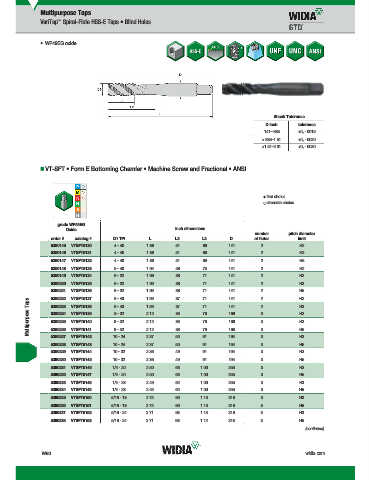

Page 1788 - Master Catalog 2017, Inch

Multipurpose Taps
VariTap Spiral-Flute HSS-E Taps • Blind Holes
™

• WP49EG oxide

Shank Tolerance
D inch tolerance
.141–.635 +0, -.0015
>.635–1.51 +0, -.0020
>1.51–2.01 +0, -.0030

„ VT-SFT • Form E Bottoming Chamfer • Machine Screw and Fractional • ANSI

first choice
alternate choice

grade WP49EG
WP49EG
Oxide inch dimensions
number pitch diameter
order # catalog # D1 TPI L L3 L2 D of flutes limit
5390145 VTSFT5130 4 - 40 1.88 .51 .69 .141 2 H2
5390146 VTSFT5131 4 - 40 1.88 .51 .69 .141 2 H3
5390147 VTSFT5132 4 - 40 1.88 .51 .69 .141 2 H5
5390148 VTSFT5133 5 - 40 1.94 .58 .75 .141 2 H2
5390149 VTSFT5134 6 - 32 1.99 .38 .71 .141 2 H2
5390220 VTSFT5135 6 - 32 1.99 .38 .71 .141 2 H3
5390221 VTSFT5136 6 - 32 1.99 .38 .71 .141 2 H5
5390222 VTSFT5137 6 - 40 1.99 .37 .71 .141 2 2 H3
H2
Multipurpose Taps 5390224 VTSFT5139 8 - 32 2.12 .38 .76 .168 3 3 3 H2
1.99
.141
6 - 40
.71
5390223 VTSFT5138
.37
5390225 VTSFT5140
.76
H3
.168
8 - 32
.38
2.12
2.12
.38
8 - 32
.168
5390226 VTSFT5141
.76
H5
5390227 VTSFT5142
.194
.91
5390228 VTSFT5143 10 - 24 2.37 .50 .91 .194 3 3 H3
H5
10 - 24
.50
2.37
5390229 VTSFT5144 10 - 32 2.36 .49 .91 .194 3 H3
5390230 VTSFT5145 10 - 32 2.36 .49 .91 .194 3 H5
5390231 VTSFT5146 1/4 - 20 2.50 .63 1.00 .255 3 H3
5390232 VTSFT5147 1/4 - 20 2.50 .63 1.00 .255 3 H5
5390233 VTSFT5148 1/4 - 28 2.49 .62 1.00 .255 3 H3
5390234 VTSFT5149 1/4 - 28 2.49 .62 1.00 .255 3 H5
5390235 VTSFT5150 5/16 - 18 2.72 .69 1.13 .318 3 H3
5390236 VTSFT5151 5/16 - 18 2.72 .69 1.13 .318 3 H5
5390237 VTSFT5152 5/16 - 24 2.71 .68 1.13 .318 3 H3
5390238 VTSFT5153 5/16 - 24 2.71 .68 1.12 .318 3 H5
(continued)
