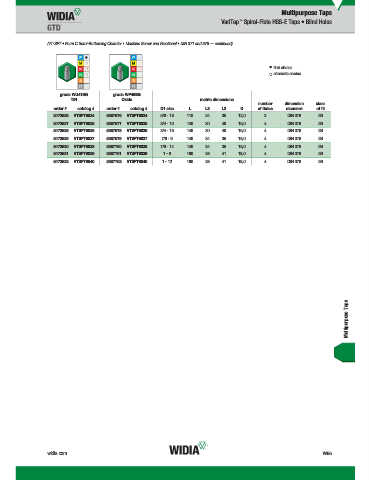

Page 1793 - Master Catalog 2017, Inch

Multipurpose Taps
™
VariTap Spiral-Flute HSS-E Taps • Blind Holes

(VT-SFT • Form C Semi-Bottoming Chamfer • Machine Screw and Fractional • DIN 371 and 376 — continued)

first choice
alternate choice

grade WU41EG grade WP49EG
WU41EG
WP49EG
TiN Oxide metric dimensions
number dimension class
order # catalog # order # catalog # D1 size L L3 L2 D of flutes standard of fit
5472626 VTSFT6034 5387676 VTSFT6034 5/8 - 18 110 24 35 12,0 3 DIN 376 2B
5472627 VTSFT6035 5387677 VTSFT6035 3/4 - 10 140 30 46 16,0 4 DIN 376 2B
5472628 VTSFT6036 5387678 VTSFT6036 3/4 - 16 140 30 46 16,0 4 DIN 376 2B
5472629 VTSFT6037 5387679 VTSFT6037 7/8 - 9 140 34 35 18,0 4 DIN 376 2B
5472630 VTSFT6038 5387700 VTSFT6038 7/8 - 14 140 34 35 18,0 4 DIN 376 2B
5472631 VTSFT6039 5387701 VTSFT6039 1 - 8 160 38 41 18,0 4 DIN 376 2B
5472632 VTSFT6040 5387702 VTSFT6040 1 - 12 160 38 41 18,0 4 DIN 376 2B

Multipurpose Taps

widia.com W95
