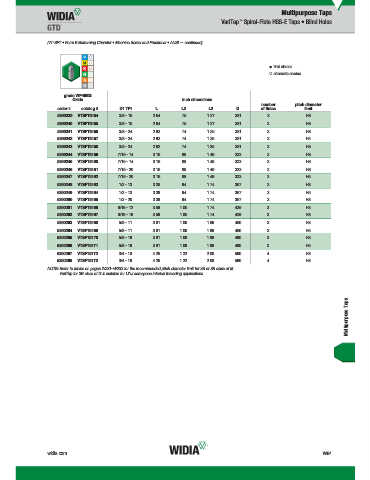

Page 1789 - Master Catalog 2017, Inch

Multipurpose Taps
™
VariTap Spiral-Flute HSS-E Taps • Blind Holes

(VT-SFT • Form E Bottoming Chamfer • Machine Screw and Fractional • ANSI — continued)

first choice
alternate choice

WP49EG
grade WP49EG
Oxide inch dimensions
number pitch diameter
order # catalog # D1 TPI L L3 L2 D of flutes limit
5390239 VTSFT5154 3/8 - 16 2.94 .75 1.27 .381 3 H3
5390240 VTSFT5155 3/8 - 16 2.94 .75 1.27 .381 3 H5
5390241 VTSFT5156 3/8 - 24 2.92 .74 1.25 .381 3 H3
5390242 VTSFT5157 3/8 - 24 2.92 .74 1.25 .381 3 H4
5390243 VTSFT5158 3/8 - 24 2.92 .74 1.25 .381 3 H5
5390244 VTSFT5159 7/16 - 14 3.16 .88 1.49 .323 3 H3
5390245 VTSFT5160 7/16 - 14 3.16 .88 1.49 .323 3 H5
5390246 VTSFT5161 7/16 - 20 3.16 .88 1.49 .323 3 H3
5390247 VTSFT5162 7/16 - 20 3.16 .88 1.49 .323 3 H5
5390248 VTSFT5163 1/2 - 13 3.38 .94 1.74 .367 3 H3
5390249 VTSFT5164 1/2 - 13 3.38 .94 1.74 .367 3 H5
5390260 VTSFT5165 1/2 - 20 3.38 .94 1.74 .367 3 H3
5390261 VTSFT5166 9/16 - 12 3.59 1.00 1.74 .429 3 H3
5390262 VTSFT5167 9/16 - 18 3.59 1.00 1.74 .429 3 H3
5390263 VTSFT5168 5/8 - 11 3.81 1.09 1.89 .480 3 H3
5390264 VTSFT5169 5/8 - 11 3.81 1.09 1.89 .480 3 H5
5390265 VTSFT5170 5/8 - 18 3.81 1.09 1.89 .480 3 H3
5390266 VTSFT5171 5/8 - 18 3.81 1.09 1.89 .480 3 H5
5390267 VTSFT5172 3/4 - 10 4.25 1.22 2.08 .590 4 H3
5390268 VTSFT5173 3/4 - 16 4.25 1.22 2.08 .590 4 H3
NOTE: Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 2B or 3B class of fit.
VariTap for 3B class of fit is suitable for UNJ aerospace internal threading applications.
