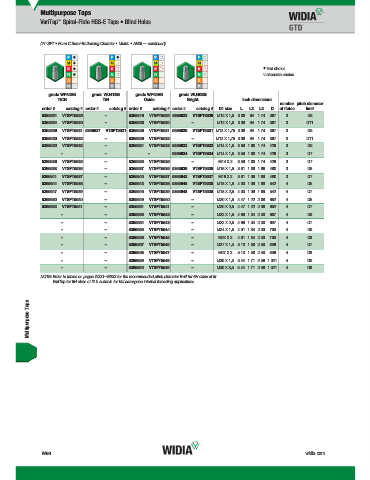

Page 1796 - Master Catalog 2017, Inch

Multipurpose Taps
VariTap Spiral-Flute HSS-E Taps • Blind Holes
™

(VT-SFT • Form C Semi-Bottoming Chamfer • Metric • ANSI — continued)

first choice
alternate choice

grade WP42EG grade WU41EG grade WP49EG grade WU40EG
WP42EG
WU41EG
WU40EG
WP49EG
TiCN TiN Oxide Bright inch dimensions
number pitch diameter
order # catalog # order # catalog # order # catalog # order # catalog # D1 size L L3 L2 D of flutes limit
5365621 VTSFT5529 – 5365619 VTSFT5529 5365622 VTSFT5529 M12 X 1,5 3.38 .94 1.74 .367 3 D6
5365624 VTSFT5530 – 5365623 VTSFT5530 – M12 X 1,5 3.38 .94 1.74 .367 3 D11
5365626 VTSFT5531 5365627 VTSFT5531 5365625 VTSFT5531 5365628 VTSFT5531 M12 X 1,75 3.38 .94 1.74 .367 3 D6
5365630 VTSFT5532 – 5365629 VTSFT5532 – M12 X 1,75 3.38 .94 1.74 .367 3 D11
5365632 VTSFT5533 – 5365631 VTSFT5533 5365633 VTSFT5533 M14 X 1,5 3.59 1.00 1.74 .429 3 D6
– – – 5365634 VTSFT5534 M14 X 1,5 3.59 1.00 1.74 .429 3 D7
5365636 VTSFT5535 – 5365635 VTSFT5535 – M14 X 2 3.59 1.00 1.74 .429 3 D7
5365638 VTSFT5536 – 5365637 VTSFT5536 5365639 VTSFT5536 M16 X 1,5 3.81 1.09 1.89 .480 3 D6
5365641 VTSFT5537 – 5365640 VTSFT5537 5365642 VTSFT5537 M16 X 2 3.81 1.09 1.89 .480 3 D7
5365644 VTSFT5538 – 5365643 VTSFT5538 5365645 VTSFT5538 M18 X 1,5 4.03 1.09 1.89 .542 4 D6
5365647 VTSFT5539 – 5365646 VTSFT5539 5365648 VTSFT5539 M18 X 2,5 4.03 1.09 1.89 .542 4 D7
5365650 VTSFT5540 – 5365649 VTSFT5540 – M20 X 1,5 4.47 1.22 2.08 .652 4 D6
5365652 VTSFT5541 – 5365651 VTSFT5541 – M20 X 2,5 4.47 1.22 2.08 .652 4 D7
– – 5365653 VTSFT5542 – M22 X 1,5 4.69 1.34 2.30 .697 4 D6
– – 5365654 VTSFT5543 – M22 X 2,5 4.69 1.34 2.30 .697 4 D7
– – 5365655 VTSFT5544 – M24 X 1,5 4.91 1.34 2.30 .760 4 D6
– – 5365656 VTSFT5545 – M24 X 3 4.91 1.34 2.30 .760 4 D8
– – 5365657 VTSFT5546 – M27 X 1,5 5.13 1.50 2.50 .896 4 D7
– – 5365658 VTSFT5547 – M27 X 3 5.13 1.50 2.50 .896 4 D8
– – 5365659 VTSFT5548 – M30 X 1,5 5.44 1.71 2.56 1.021 4 D6
– – 5365660 VTSFT5549 – M30 X 3,5 5.44 1.71 2.56 1.021 4 D9
NOTE: Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 6H class of fit.
VariTap for 6H class of fit is suitable for MJ aerospace internal threading applications.

Multipurpose Taps

W98 widia.com
