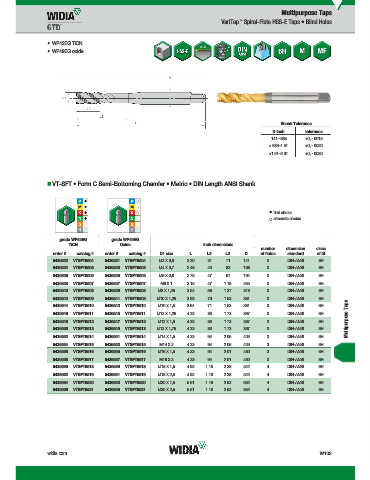

Page 1801 - Master Catalog 2017, Inch

Multipurpose Taps
VariTap Spiral-Flute HSS-E Taps • Blind Holes
™

• WP42EG TiCN
• WP49EG oxide

Shank Tolerance
D inch tolerance
.141–.635 +0, -.0015
>.635–1.51 +0, -.0020
>1.51–2.01 +0, -.0030

„ VT-SFT • Form C Semi-Bottoming Chamfer • Metric • DIN Length ANSI Shank

first choice
alternate choice

WP42EG
grade WP42EG grade WP49EG
WP49EG
TiCN Oxide inch dimensions
number dimension class
order # catalog # order # catalog # D1 size L L3 L2 D of flutes standard of fit
5436522 VTSFT9504 5436521 VTSFT9504 M3 X 0,5 2.20 .31 .71 .141 2 DIN-ANSI 6H
5436524 VTSFT9505 5436523 VTSFT9505 M4 X 0,7 2.48 .43 .83 .168 3 DIN-ANSI 6H
5436526 VTSFT9506 5436525 VTSFT9506 M5 X 0,8 2.75 .47 .97 .194 3 DIN-ANSI 6H
5436528 VTSFT9507 5436527 VTSFT9507 M6 X 1 3.15 .47 1.18 .255 3 DIN-ANSI 6H
5436540 VTSFT9508 5436529 VTSFT9508 M8 X 1,25 3.54 .58 1.37 .318 3 DIN-ANSI 6H
5436542 VTSFT9509 5436541 VTSFT9509 M10 X 1,25 3.93 .70 1.53 .381 3 DIN-ANSI 6H
Multipurpose Taps
5436544 VTSFT9510 5436543 VTSFT9510 M10 X 1,5 3.94 .71 1.53 .381 3 DIN-ANSI 6H
5436546 VTSFT9511 5436545 VTSFT9511 M12 X 1,25 4.33 .83 1.73 .367 3 DIN-ANSI 6H
5436548 VTSFT9512 5436547 VTSFT9512 M12 X 1,5 4.33 .83 1.73 .367 3 DIN-ANSI 6H
5436550 VTSFT9513 5436549 VTSFT9513 M12 X 1,75 4.33 .83 1.73 .367 3 DIN-ANSI 6H
5436552 VTSFT9514 5436551 VTSFT9514 M14 X 1,5 4.33 .94 2.05 .429 3 DIN-ANSI 6H
5436554 VTSFT9515 5436553 VTSFT9515 M14 X 2 4.33 .94 2.05 .429 3 DIN-ANSI 6H
5436556 VTSFT9516 5436555 VTSFT9516 M16 X 1,5 4.33 .94 2.01 .480 3 DIN-ANSI 6H
5436558 VTSFT9517 5436557 VTSFT9517 M16 X 2 4.33 .94 2.01 .480 3 DIN-ANSI 6H
5436560 VTSFT9518 5436559 VTSFT9518 M18 X 1,5 4.92 1.18 2.28 .542 4 DIN-ANSI 6H
5436562 VTSFT9519 5436561 VTSFT9519 M18 X 2,5 4.92 1.18 2.28 .542 4 DIN-ANSI 6H
5436564 VTSFT9520 5436563 VTSFT9520 M20 X 1,5 5.51 1.18 2.52 .652 4 DIN-ANSI 6H
5436566 VTSFT9521 5436565 VTSFT9521 M20 X 2,5 5.51 1.18 2.52 .652 4 DIN-ANSI 6H

widia.com W103
