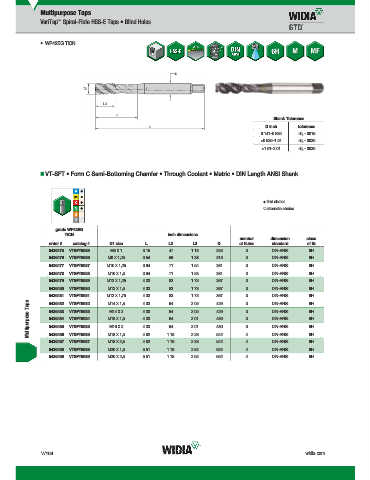

Page 1802 - Master Catalog 2017, Inch

Multipurpose Taps
VariTap Spiral-Flute HSS-E Taps • Blind Holes
™

• WP42EG TiCN

Shank Tolerance
D inch tolerance
0.141–0.635 +0, -.0015
>0.635–1.51 +0, -.0020
>1.51–2.01 +0, -.0030

„ VT-SFT • Form C Semi-Bottoming Chamfer • Through Coolant • Metric • DIN Length ANSI Shank

first choice
alternate choice

WP42EG
grade WP42EG
TiCN inch dimensions
number dimension class
order # catalog # D1 size L L3 L2 D of flutes standard of fit
5436475 VTSFT9925 M6 X 1 3.15 .47 1.18 .255 3 DIN-ANSI 6H
5436476 VTSFT9926 M8 X 1,25 3.54 .59 1.38 .318 3 DIN-ANSI 6H
5436477 VTSFT9927 M10 X 1,25 3.94 .71 1.54 .381 3 DIN-ANSI 6H
5436478 VTSFT9928 M10 X 1,5 3.94 .71 1.53 .381 3 DIN-ANSI 6H
5436479 VTSFT9929 M12 X 1,25 4.33 .83 1.73 .367 3 DIN-ANSI 6H
5436480 VTSFT9930 M12 X 1,5 4.33 .83 1.73 .367 3 DIN-ANSI 6H
5436481 VTSFT9931 M12 X 1,75 4.33 .83 1.73 .367 3 3 DIN-ANSI 6H
Multipurpose Taps 5436483 VTSFT9933 M16 X 1,5 4.33 .94 2.05 .429 3 3 3 DIN-ANSI 6H
2.05
4.33
.94
M14 X 1,5
DIN-ANSI
6H
.429
5436482 VTSFT9932
M14 X 2
.94
5436484 VTSFT9934
2.01
.480
DIN-ANSI
6H
4.33
2.01
6H
5436485 VTSFT9935
.480
DIN-ANSI
.94
4.33
M16 X 2
5436486 VTSFT9936
2.28
4.92
1.18
6H
DIN-ANSI
M18 X 2,5
5436487 VTSFT9937 M18 X 1,5 4.92 1.18 2.28 .542 4 4 DIN-ANSI 6H
.542
5436488 VTSFT9938 M20 X 1,5 5.51 1.18 2.52 .652 4 DIN-ANSI 6H
5436489 VTSFT9939 M20 X 2,5 5.51 1.18 2.52 .652 4 DIN-ANSI 6H
W104 widia.com
