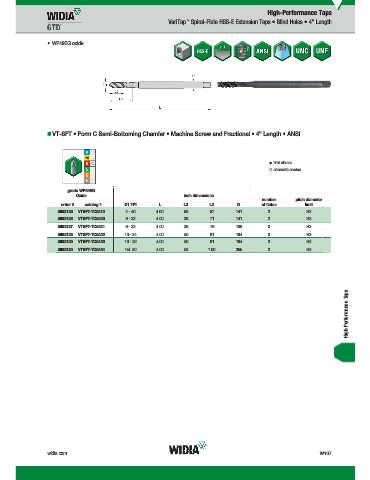

Page 1805 - Master Catalog 2017, Inch

High-Performance Taps
™
VariTap Spiral-Flute HSS-E Extension Taps • Blind Holes • 4" Length

• WP49EG oxide

„ VT-SFT • Form C Semi-Bottoming Chamfer • Machine Screw and Fractional • 4" Length • ANSI

first choice
alternate choice

WP49EG
grade WP49EG
Oxide inch dimensions
number pitch diameter
order # catalog # D1 TPI L L3 L2 D of flutes limit
5602125 VTSFT-TC5419 4 - 40 4.00 .56 .87 .141 2 H2
5602126 VTSFT-TC5420 6 - 32 4.00 .38 .71 .141 2 H3
5602127 VTSFT-TC5421 8 - 32 4.00 .38 .76 .168 3 H3
5602128 VTSFT-TC5422 10 - 24 4.00 .50 .91 .194 3 H3
5602129 VTSFT-TC5423 10 - 32 4.00 .50 .91 .194 3 H3
5602130 VTSFT-TC5424 1/4 20 4.00 .63 1.00 .255 3 H3

High-Performance Taps

widia.com W107
