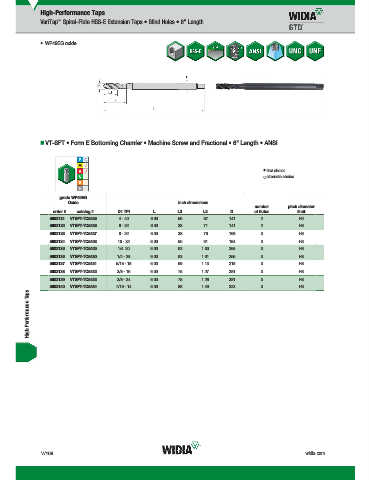

High-Performance Taps
VariTap Spiral-Flute HSS-E Extension Taps • Blind Holes • 6" Length
™

• WP49EG oxide

„ VT-SFT • Form E Bottoming Chamfer • Machine Screw and Fractional • 6" Length • ANSI

first choice
alternate choice

grade WP49EG
WP49EG
Oxide inch dimensions
number pitch diameter
order # catalog # D1 TPI L L3 L2 D of flutes limit
5602131 VTSFT-TC5425 4 - 40 6.00 .56 .87 .141 2 H2
5602132 VTSFT-TC5426 6 - 32 6.00 .38 .71 .141 2 H3
5602133 VTSFT-TC5427 8 - 32 6.00 .38 .76 .168 3 H3
5602134 VTSFT-TC5428 10 - 32 6.00 .50 .91 .194 3 H3
5602135 VTSFT-TC5429 1/4 20 6.00 .63 1.00 .255 3 H3
5602136 VTSFT-TC5430 1/4 - 28 6.00 .63 1.01 .255 3 H3
5602137 VTSFT-TC5431 5/16 - 18 6.00 .69 1.13 .318 3 H3
5602138 VTSFT-TC5432 3/8 - 16 6.00 .75 1.27 .381 3 H3
5602139 VTSFT-TC5433 3/8 - 24 6.00 .75 1.26 .381 3 H3
5602140 VTSFT-TC5434 7/16 - 14 6.00 .88 1.49 .323 3 H3
High-Performance Taps

W108 widia.com
