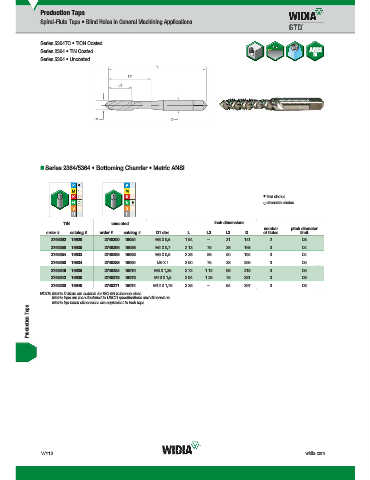

Page 1810 - Master Catalog 2017, Inch

Production Taps
Spiral-Flute Taps • Blind Holes in General Machining Applications

Series 5364TC • TiCN Coated
Series 2364 • TiN Coated ANSI
M
Series 5364 • Uncoated

„ Series 2364/5364 • Bottoming Chamfer • Metric ANSI

first choice
alternate choice

TiN uncoated inch dimensions
TiN
uncoated
number pitch diameter
order # catalog # order # catalog # D1 size L L2 L3 D of flutes limit
2746262 19928 2748300 16054 M3 X 0,5 1.94 — .31 .141 2 D3
2746258 19930 2748296 16058 M4 X 0,7 2.13 .75 .38 .168 3 D4
2746254 19932 2748293 16062 M5 X 0,8 2.38 .88 .50 .194 3 D4
2746250 19934 2748288 16064 M6 X 1 2.50 .75 .38 .255 3 D5
2746246 19936 2748284 16070 M8 X 1,25 2.72 1.12 .69 .318 3 D5
2746242 19938 2748275 16072 M10 X 1,5 2.94 1.25 .75 .381 3 D6
2746238 19940 2748271 16074 M12 X 1,75 3.38 — .94 .367 3 D6
NOTE: Metric D limits are suitable for ISO 6H tolerance class.
Metric taps are manufactured to USCTI specifications and dimensions.
Metric tap blank dimensions are equivalent to inch taps.
