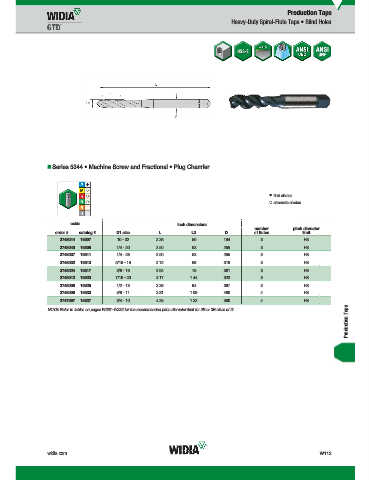

Page 1811 - Master Catalog 2017, Inch

Production Taps
Heavy-Duty Spiral-Flute Taps • Blind Holes

„ Series 5344 • Machine Screw and Fractional • Plug Chamfer

first choice
alternate choice

oxide inch dimensions
oxide
number pitch diameter
order # catalog # D1 size L L3 D of flutes limit
2748044 16507 10 - 32 2.38 .50 .194 3 H3
2748040 16509 1/4 - 20 2.50 .63 .255 3 H3
2748037 16511 1/4 - 28 2.50 .63 .255 3 H3
2748032 16513 5/16 - 18 2.72 .69 .318 3 H3
2748024 16517 3/8 - 16 2.94 .75 .381 3 H3
2748012 16523 7/16 - 20 3.17 1.44 .323 3 H3
2748008 16525 1/2 - 13 3.38 .94 .367 3 H3
2748000 16533 5/8 - 11 3.81 1.09 .480 4 H3
2747997 16537 3/4 - 10 4.25 1.22 .590 4 H3
Production Taps
NOTE: Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 2B or 3B class of fit.
