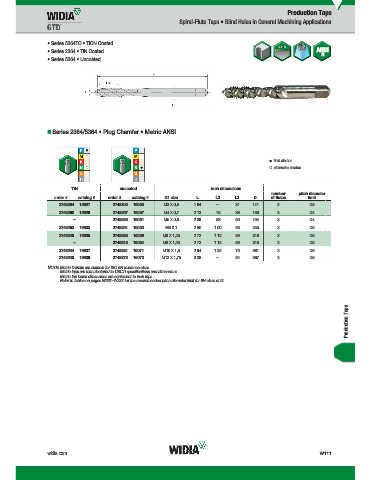

Page 1809 - Master Catalog 2017, Inch

Production Taps
Spiral-Flute Taps • Blind Holes in General Machining Applications

• Series 5364TC • TiCN Coated
• Series 2364 • TiN Coated ANSI
M
• Series 5364 • Uncoated

„ Series 2364/5364 • Plug Chamfer • Metric ANSI

first choice
alternate choice

TiN uncoated inch dimensions
uncoated
TiN
number pitch diameter
order # catalog # order # catalog # D1 size L L2 L3 D of flutes limit
2746264 19927 2748302 16053 M3 X 0,5 1.94 — .31 .141 2 D3
2746260 19929 2748297 16057 M4 X 0,7 2.13 .75 .38 .168 3 D4
– 2748295 16061 M5 X 0,8 2.38 .88 .50 .194 3 D4
2746252 19933 2748291 16063 M6 X 1 2.50 1.00 .63 .255 3 D5
2746248 19935 2748285 16069 M8 X 1,25 2.72 1.12 .69 .318 3 D5
– 2746915 19054 M8 X 1,25 2.72 1.12 .69 .318 3 D5
2746244 19937 2748281 16071 M10 X 1,5 2.94 1.25 .75 .381 3 D6
2746240 19939 2748273 16073 M12 X 1,75 3.38 — .94 .367 3 D6
NOTE: Metric D limits are suitable for ISO 6H tolerance class.
Metric taps are manufactured to USCTI specifications and dimensions.
Metric tap blank dimensions are equivalent to inch taps.
Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 6H class of fit.
