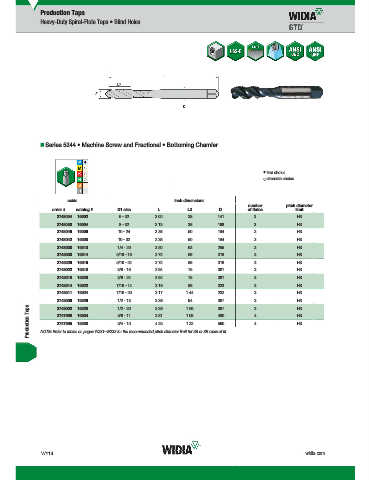

Production Taps
Heavy-Duty Spiral-Flute Taps • Blind Holes

„ Series 5344 • Machine Screw and Fractional • Bottoming Chamfer

first choice
alternate choice

oxide
oxide inch dimensions
number pitch diameter
order # catalog # D1 size L L3 D of flutes limit
2748054 16502 6 - 32 2.00 .38 .141 3 H3
2748050 16504 8 - 32 2.13 .38 .168 3 H3
2748046 16506 10 - 24 2.38 .50 .194 3 H3
2748042 16508 10 - 32 2.38 .50 .194 3 H3
2748038 16510 1/4 - 20 2.50 .63 .255 3 H3
2748030 16514 5/16 - 18 2.72 .69 .318 3 H3
2748026 16516 5/16 - 24 2.72 .69 .318 3 H3
2748022 16518 3/8 - 16 2.94 .75 .381 3 H3
2748018 16520 3/8 - 24 2.94 .75 .381 3 H3
2748014 16522 7/16 - 14 3.16 .88 .323 3 H3
2748011 16524 7/16 - 20 3.17 1.44 .232 3 H3
.94
2748006 16526 1/2 - 13 3.38 1.66 .367 3 3 H3
Production Taps NOTE: Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 2B or 3B class of fit. 4 4 H3
1/2 - 20
2748002 16528
.367
H3
3.38
5/8 - 11
2747998 16534
1.09
.480
3.81
.590
H3
1.22
2747995 16538
3/4 - 10
4.25
