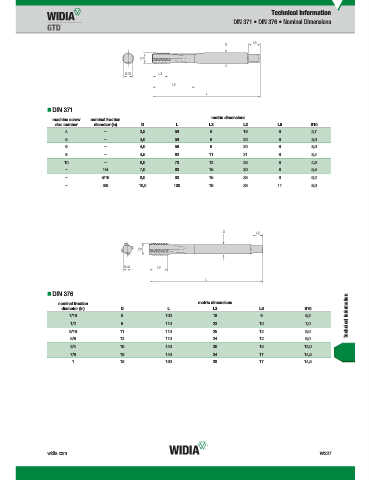

Page 1925 - Master Catalog 2017, Inch

Technical Information
DIN 371 • DIN 376 • Nominal Dimensions

„ DIN 371
metric dimensions
machine screw nominal fraction
size number diameter (in) D L L3 L2 L5 S10
4 – 3,5 56 8 18 6 2,7
5 – 4,0 56 9 20 6 3,0
6 – 4,0 56 9 20 6 3,0
8 – 4,5 63 11 21 6 3,4
10 – 6,0 70 12 25 8 4,9
– 1/4 7,0 80 15 30 8 5,5
– 5/16 8,0 90 15 35 9 6,2
– 3/8 10,0 100 19 39 11 8,0

„ DIN 376
nominal fraction metric dimensions
diameter (in) D L L3 L5 S10
7/16 8 100 18 9 6,2 Technical Information
1/2 9 110 23 10 7,0
9/16 11 110 25 12 9,0
5/8 12 110 24 12 9,0
3/4 16 140 30 15 12,0
7/8 18 140 34 17 14,5
1 18 160 38 17 14,5

widia.com W227
