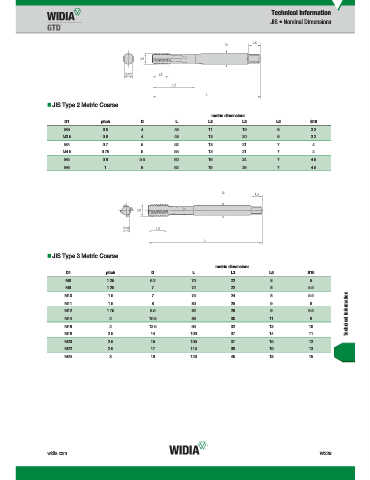

Page 1927 - Master Catalog 2017, Inch

Technical Information
JIS • Nominal Dimensions

„ JIS Type 2 Metric Coarse

metric dimensions
D1 pitch D L L3 L2 L5 S10
M3 0.5 4 46 11 19 6 3.2
M3.5 0.6 4 48 13 20 6 3.2
M4 0.7 5 52 13 21 7 4
M4.5 0.75 5 55 13 21 7 4
M5 0.8 5.5 60 16 24 7 4.5
M6 1 6 62 19 29 7 4.5

„ JIS Type 3 Metric Coarse

metric dimensions
D1 pitch D L L3 L5 S10
M8 1.25 6.2 70 22 8 5
M9 1.25 7 72 22 8 5.5
Technical Information
M10 1.5 7 75 24 8 5.5
M11 1.5 8 80 25 9 6
M12 1.75 8.5 82 29 9 6.5
M14 2 10.5 88 30 11 8
M16 2 12.5 95 32 13 10
M18 2.5 14 100 37 14 11
M20 2.5 15 105 37 15 12
M22 2.5 17 115 38 16 13
M24 3 19 120 45 18 15

widia.com W229
