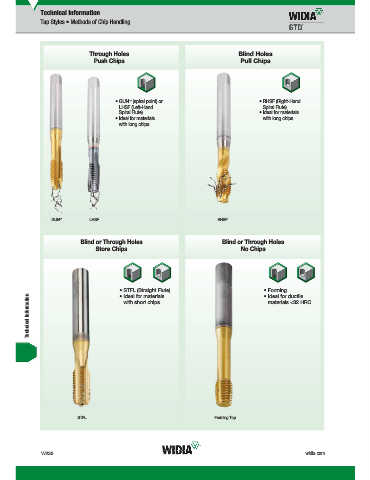

Technical Information
Tap Styles • Methods of Chip Handling
Through Holes Blind Holes
Push Chips Pull Chips
• GUN (spiral point) or • RHSF (Right-Hand
™
LHSF (Left-Hand Spiral Flute).
Spiral Flute). • Ideal for materials
• Ideal for materials with long chips.
with long chips.
GUN ™ LHSF RHSF
Blind or Through Holes Blind or Through Holes
Store Chips No Chips
• STFL (Straight Flute). • Forming.
Technical Information with short chips. materials <32 HRC.
• Ideal for materials
• Ideal for ductile
STFL Forming Tap
