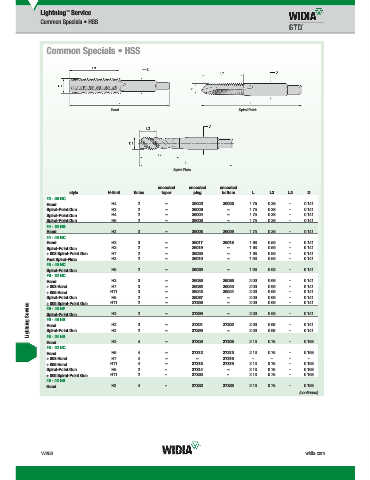

Page 1950 - Master Catalog 2017, Inch

Lightning Service
™
Common Specials • HSS

Common Specials • HSS

Hand Spiral Point

Spiral Flute

uncoated uncoated uncoated
style H-limit fl utes taper plug bottom L L3 L2 D
#2 - 56 NC
Hand H4 2 – 26002 26003 1.75 0.38 – 0.141
Spiral-Point Gun H3 2 – 26000 – 1.75 0.38 – 0.141
Spiral-Point Gun H4 2 – 26004 – 1.75 0.38 – 0.141
Spiral-Point Gun H5 2 – 26005 – 1.75 0.38 – 0.141
#4 - 32 NS
Hand H2 3 – 26008 26009 1.75 0.38 – 0.141
#4 - 40 NC
Hand H3 3 – 26017 26018 1.93 0.56 – 0.141
Spiral-Point Gun H3 2 – 26019 – 1.93 0.56 – 0.141
+.003 Spiral-Point Gun H7 2 – 26020 – 1.93 0.56 – 0.141
Fast Spiral-Flute H3 2 – 26010 – 1.93 0.56 – 0.141
#5 - 40 NC
Spiral-Point Gun H5 2 – 26029 – 1.93 0.63 – 0.141
#6 - 32 NC
Hand H3 3 – 26035 26036 2.00 0.69 – 0.141
+.003 Hand H7 3 – 26039 26040 2.00 0.69 – 0.141
+.005 Hand H11 3 – 26043 26044 2.00 0.69 – 0.141
H5
Spiral-Point Gun H11 2 2 – – 26037 – – 2.00 0.69 – – 0.141
Lightning Service #6 - 40 NF H3 2 3 2 – – – 27299 27302 2.00 0.69 – – – 0.141
2.00
0.69
27295
0.141
+.005 Spiral-Point Gun
–
Spiral-Point Gun
#6 - 48 NS
27301
2.00
0.69
0.141
H2
Hand
0.141
H2
0.69
2.00
–
27299
Spiral-Point Gun
#8 - 24 NS
Hand H3 4 – 27305 27306 2.13 0.75 – 0.168
#8 - 32 NC
Hand H5 4 – 27312 27313 2.13 0.75 – 0.168
+.003 Hand H7 4 – – 27316 – – – –
+.005 Hand H11 4 – 27318 27319 2.13 0.75 – 0.168
Spiral-Point Gun H5 2 – 27314 – 2.13 0.75 – 0.168
+.005 Spiral-Point Gun H11 2 – 27320 – 2.13 0.75 – 0.168
#8 - 40 NS
Hand H2 4 – 27322 27323 2.13 0.75 – 0.168
