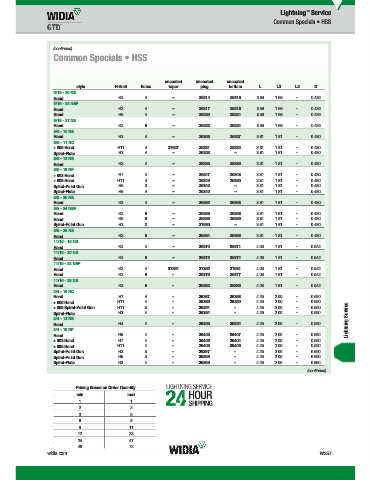

Page 1955 - Master Catalog 2017, Inch

Lightning Service
™
Common Specials • HSS

(continued)
Common Specials • HSS

uncoated uncoated uncoated
style H-limit fl utes taper plug bottom L L3 L2 D
9/16 - 20 NS
Hand H3 4 – 26314 26315 3.59 1.66 – 0.429
9/16 - 24 NEF
Hand H3 4 – 26317 26318 3.59 1.66 – 0.429
Hand H5 4 – 26320 26321 3.59 1.66 – 0.429
9/16 - 27 NS
Hand H3 6 – 26323 26324 3.59 1.66 – 0.429
5/8 - 10 NS
Hand H3 4 – 26356 26327 3.81 1.81 – 0.480
5/8 - 11 NC
+.005 Hand H11 4 27627 26331 26332 3.81 1.81 – 0.480
Spiral-Flute H3 4 – 26328 – 3.81 1.81 – 0.480
5/8 - 12 NS
Hand H3 4 – 26335 26336 3.81 1.81 – 0.480
5/8 - 18 NF
+.003 Hand H7 4 – 26347 26348 3.81 1.81 – 0.480
+.005 Hand H11 4 – 26349 26350 3.81 1.81 – 0.480
Spiral-Point Gun H5 3 – 26345 – 3.81 1.81 – 0.480
Spiral-Flute H5 4 – 26340 – 3.81 1.81 – 0.480
5/8 - 20 NS
Hand H3 4 – 26352 26353 3.81 1.81 – 0.480
5/8 - 24 NEF
Hand H3 6 – 26355 26356 3.81 1.81 – 0.480
Hand H5 6 – 26358 26359 3.81 1.81 – 0.480
Spiral-Point Gun H3 3 – 27630 – 3.81 1.81 – 0.480
5/8 - 28 NS
Hand H3 6 – 26364 26365 3.81 1.81 – 0.480
11/16 - 18 NS
Hand H3 4 – 26370 26371 4.03 1.81 – 0.542
11/16 - 20 NS
Hand H3 6 – 26373 26374 4.03 1.81 – 0.542
11/16 - 24 NEF
Hand H3 4 27361 27362 27631 4.03 1.81 – 0.542
Hand H3 6 – 26376 26377 4.03 1.81 – 0.542
11/16 - 28 NS
Hand H3 6 – 26382 26383 4.03 1.81 – 0.542
3/4 - 10 NC
Hand H1 4 – 26387 26388 4.25 2.00 – 0.590
+.005 Hand H11 4 – 26389 26390 4.25 2.00 – 0.590
+.005 Spiral-Point Gun H11 3 – 26391 – 4.25 2.00 – 0.590
Spiral-Flute H3 4 – 26384 – 4.25 2.00 – 0.590
3/4 - 12 NS Lightning Service
Hand H4 4 – 26393 26394 4.25 2.00 – 0.590
3/4 - 16 NF
Hand H8 4 – 26406 26407 4.25 2.00 – 0.590
+.003 Hand H7 4 – 26403 26404 4.25 2.00 – 0.590
+.005 Hand H11 4 – 26408 26409 4.25 2.00 – 0.590
Spiral-Point Gun H3 3 – 26397 – 4.25 2.00 – 0.590
Spiral-Point Gun H5 3 – 26398 – 4.25 2.00 – 0.590
Spiral-Flute H3 4 – 26395 – 4.25 2.00 – 0.590
(continued)

Pricing Based on Order Quantity
min max
1 1
2 2
3 5
6 8
9 11
12 23
24 47
48 72
