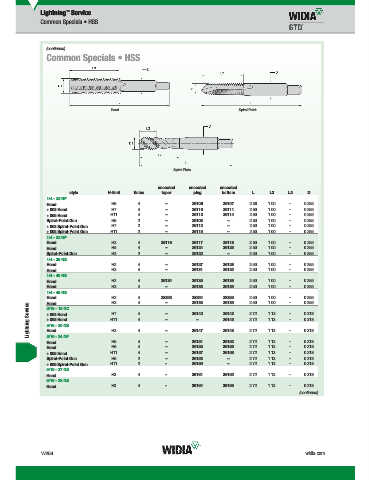

Page 1952 - Master Catalog 2017, Inch

Lightning ™ ™ Service
Lightning Service
Common Specials • HSS

(continued)
Common Specials • HSS

Hand Spiral Point

Spiral Flute

uncoated uncoated uncoated
style H-limit fl utes taper plug bottom L L3 L2 D
1/4 - 28 NF
Hand H5 4 – 26106 26107 2.50 1.00 – 0.255
+.003 Hand H7 4 – 26110 26111 2.50 1.00 – 0.255
+.005 Hand H11 4 – 26113 26114 2.50 1.00 – 0.255
Spiral-Point Gun H5 2 – 26108 – 2.50 1.00 – 0.255
+.003 Spiral-Point Gun H7 2 – 26112 – 2.50 1.00 – 0.255
+.005 Spiral-Point Gun H11 2 – 26115 – 2.50 1.00 – 0.255
1/4 - 32 NF
Hand H3 4 26116 26117 26118 2.50 1.00 – 0.255
Hand H5 4 – 26124 26125 2.50 1.00 – 0.255
Spiral-Point Gun H3 2 – 26122 – 2.50 1.00 – 0.255
1/4 - 36 NS
Hand H2 4 – 26127 26128 2.50 1.00 – 0.255
Hand H3 4 – 26131 26132 2.50 1.00 – 0.255
1/4 - 40 NS
Hand H2 4 26134 26135 26136 2.50 1.00 – 0.255
Hand H3 4 – 26138 26139 2.50 1.00 – 0.255
1/4 - 48 NS
Hand H2 4 4 28393 28394 28395 2.50 1.00 – – 0.255
Lightning Service 5/16 - 18 NC H11 4 4 4 – – – 26142 26143 2.72 1.13 – – – 0.318
2.50
1.00
H3
26138
0.255
26139
–
Hand
H7
+.003 Hand
–
26145
1.13
0.318
2.72
+.005 Hand
5/16 - 20 NS
H3
0.318
2.72
1.13
26147
26148
Hand
5/16 - 24 NF
Hand H5 4 – 26151 26152 2.72 1.13 – 0.318
Hand H6 4 – 26155 26156 2.72 1.13 – 0.318
+.005 Hand H11 4 – 26157 26158 2.72 1.13 – 0.318
Spiral-Point Gun H5 2 – 26153 – 2.72 1.13 – 0.318
+.005 Spiral-Point Gun H11 2 – 26159 – 2.72 1.13 – 0.318
5/16 - 27 NS
Hand H3 4 – 26161 26162 2.72 1.13 – 0.318
5/16 - 28 NS
Hand H3 4 – 26164 26165 2.72 1.13 – 0.318
(continued)
