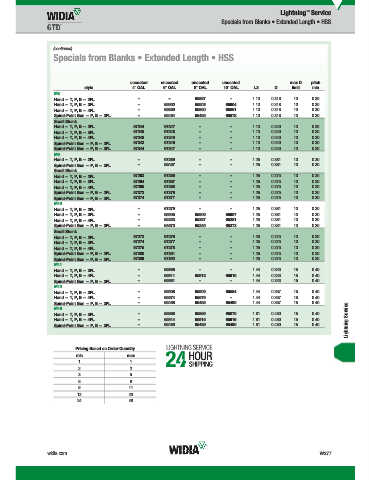

Page 1975 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • Extended Length • HSS

(continued)
Specials from Blanks • Extended Length • HSS

uncoated uncoated uncoated uncoated max D pitch
style 4" OAL 6" OAL 8" OAL 10" OAL L3 D limit min
M8
Hand — T, P, B — 2FL – – 65887 – 1.13 0.318 13 0.30
Hand — T, P, B — 3FL – 65902 65903 65904 1.13 0.318 13 0.30
Hand — T, P, B — 4FL – 65859 65860 65861 1.13 0.318 13 0.30
Spiral-Point Gun — P, B — 3FL – 65464 65466 65678 1.13 0.318 13 0.30
Small Shank
Hand — T, P, B — 2FL 67244 67247 – – 1.13 0.240 13 0.30
Hand — T, P, B — 3FL 67245 67248 – – 1.13 0.240 13 0.30
Hand — T, P, B — 4FL 67246 67249 – – 1.13 0.240 13 0.30
Spiral-Point Gun — P, B — 2FL 67343 67346 – – 1.13 0.240 13 0.30
Spiral-Point Gun — P, B — 3FL 67344 67347 – – 1.13 0.240 13 0.30
M9
Hand — T, P, B — 2FL – 67269 – – 1.25 0.381 13 0.30
Spiral-Point Gun — P, B — 3FL – 65457 – – 1.25 0.381 13 0.30
Small Shank
Hand — T, P, B — 2FL 67263 67266 – – 1.25 0.275 13 0.30
Hand — T, P, B — 3FL 67264 67267 – – 1.25 0.275 13 0.30
Hand — T, P, B — 4FL 67265 67268 – – 1.25 0.275 13 0.30
Spiral-Point Gun — P, B — 2FL 67373 67376 – – 1.25 0.275 13 0.30
Spiral-Point Gun — P, B — 3FL 67374 67377 – – 1.25 0.275 13 0.30
M10
Hand — T, P, B — 2FL – 67279 – – 1.25 0.381 13 0.30
Hand — T, P, B — 3FL – 65905 65906 65907 1.25 0.381 13 0.30
Hand — T, P, B — 4FL – 65233 65257 65281 1.25 0.381 13 0.30
Spiral-Point Gun — P, B — 3FL – 64573 65249 65273 1.25 0.381 13 0.30
Small Shank
Hand — T, P, B — 2FL 67273 67276 – – 1.25 0.275 13 0.30
Hand — T, P, B — 3FL 67274 67277 – – 1.25 0.275 13 0.30
Hand — T, P, B — 4FL 67275 67278 – – 1.25 0.275 13 0.30
Spiral-Point Gun — P, B — 2FL 67388 67391 – – 1.25 0.275 13 0.30
Spiral-Point Gun — P, B — 3FL 67389 67392 – – 1.25 0.275 13 0.30
M11
Hand — T, P, B — 3FL – 65865 – – 1.44 0.323 15 0.40
Hand — T, P, B — 4FL – 65911 65912 65910 1.44 0.323 15 0.40
Spiral-Point Gun — P, B — 3FL – 65681 – – 1.44 0.323 15 0.40
M12
Hand — T, P, B — 3FL – 65908 65909 65584 1.44 0.367 15 0.40
Hand — T, P, B — 4FL – 65574 65579 – 1.44 0.367 15 0.40
Spiral-Point Gun — P, B — 3FL – 65468 65485 65490 1.44 0.367 15 0.40
M16
Hand — T, P, B — 3FL – 65868 65869 65870 1.81 0.480 15 0.40
Hand — T, P, B — 4FL – 65914 65915 65916 1.81 0.480 15 0.40 Lightning Service
Spiral-Point Gun — P, B — 3FL – 65480 65485 65490 1.81 0.480 15 0.40

Pricing Based on Order Quantity
min max
1 1
2 2
3 5
6 8
9 11
12 23
24 48

widia.com W277
