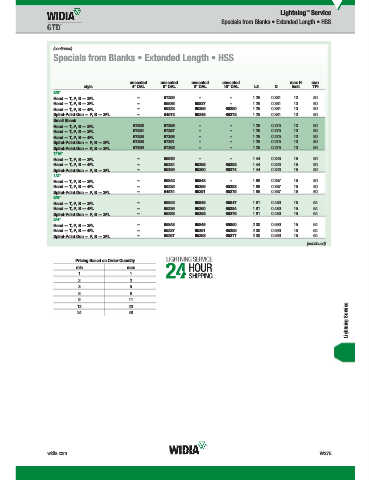

Page 1973 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • Extended Length • HSS

(continued)
Specials from Blanks • Extended Length • HSS

uncoated uncoated uncoated uncoated max H max
style 4" OAL 6" OAL 8" OAL 10" OAL L3 D limit TPI
3/8"
Hand — T, P, B — 2FL – 67259 – – 1.25 0.381 13 80
Hand — T, P, B — 3FL – 65836 65837 – 1.25 0.381 13 80
Hand — T, P, B — 4FL – 65232 65256 65280 1.25 0.381 13 80
Spiral-Point Gun — P, B — 3FL – 64572 65248 65272 1.25 0.381 13 80
Small Shank
Hand — T, P, B — 2FL 67253 67256 – – 1.25 0.275 13 80
Hand — T, P, B — 3FL 67254 67257 – – 1.25 0.275 13 80
Hand — T, P, B — 4FL 67255 67258 – – 1.25 0.275 13 80
Spiral-Point Gun — P, B — 2FL 67358 67361 – – 1.25 0.275 13 80
Spiral-Point Gun — P, B — 3FL 67359 67362 – – 1.25 0.275 13 80
7/16"
Hand — T, P, B — 3FL – 65839 – – 1.44 0.323 15 80
Hand — T, P, B — 4FL – 65234 65258 65282 1.44 0.323 15 80
Spiral-Point Gun — P, B — 3FL – 65269 65250 65274 1.44 0.323 15 80
1/2"
Hand — T, P, B — 3FL – 65842 65843 – 1.66 0.367 15 80
Hand — T, P, B — 4FL – 65235 65259 65283 1.66 0.367 15 80
Spiral-Point Gun — P, B — 3FL – 64574 65251 65275 1.66 0.367 15 80
5/8"
Hand — T, P, B — 3FL – 65845 65846 65847 1.81 0.480 15 64
Hand — T, P, B — 4FL – 65236 65260 65284 1.81 0.480 15 64
Spiral-Point Gun — P, B — 3FL – 65268 65252 65276 1.81 0.480 15 64
3/4"
Hand — T, P, B — 3FL – 65848 65849 65850 2.00 0.590 15 64
Hand — T, P, B — 4FL – 65237 65261 65285 2.00 0.590 15 64
Spiral-Point Gun — P, B — 3FL – 65267 65253 65277 2.00 0.590 15 64
(continued)

Pricing Based on Order Quantity
min max
1 1
2 2
3 5
6 8
9 11
Lightning Service
12 23
24 48

widia.com W275
