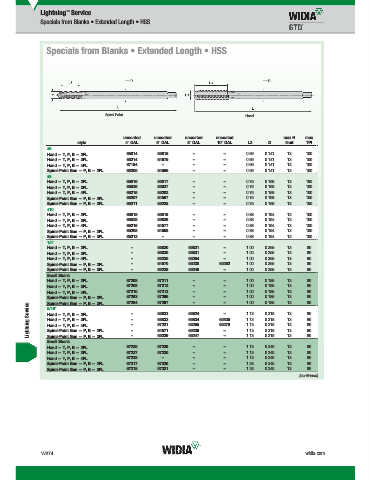

Page 1972 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • Extended Length • HSS

Specials from Blanks • Extended Length • HSS

Spiral Point Hand

uncoated uncoated uncoated uncoated max H max
style 4" OAL 6" OAL 8" OAL 10" OAL L3 D limit TPI
#6
Hand — T, P, B — 2FL 65814 65815 – – 0.69 0.141 13 100
Hand — T, P, B — 3FL 65214 64575 – – 0.69 0.141 13 100
Hand — T, P, B — 4FL 67184 – – – 0.69 0.141 13 100
Spiral-Point Gun — P, B — 2FL 65206 64566 – – 0.69 0.141 13 100
#8
Hand — T, P, B — 2FL 65816 65817 – – 0.75 0.168 13 100
Hand — T, P, B — 3FL 65826 65827 – – 0.75 0.168 13 100
Hand — T, P, B — 4FL 65215 65202 – – 0.75 0.168 13 100
Spiral-Point Gun — P, B — 2FL 65207 64567 – – 0.75 0.168 13 100
Spiral-Point Gun — P, B — 3FL 65211 65225 – – 0.75 0.168 13 100
#10
Hand — T, P, B — 2FL 65818 65819 – – 0.88 0.194 13 100
Hand — T, P, B — 3FL 65828 65829 – – 0.88 0.194 13 100
Hand — T, P, B — 4FL 65216 64577 – – 0.88 0.194 13 100
Spiral-Point Gun — P, B — 2FL 65208 64568 – – 0.88 0.194 13 100
Spiral-Point Gun — P, B — 3FL 65212 – – – 0.88 0.194 13 100
1/4"
Hand — T, P, B — 2FL – 65820 65821 – 1.00 0.255 13 80
Hand — T, P, B — 3FL – 65830 65831 – 1.00 0.255 13 80
Hand — T, P, B — 4FL – 65230 65254 – 1.00 0.255 13 80
Spiral-Point Gun — P, B — 2FL – 64570 65238 65262 1.00 0.255 13 80
Spiral-Point Gun — P, B — 3FL – 65228 65246 – 1.00 0.255 13 80
Small Shank
Hand — T, P, B — 2FL 67208 67211 – – 1.00 0.185 13 80
Hand — T, P, B — 3FL 67209 67212 – – 1.00 0.185 13 80
Hand — T, P, B — 4FL 67210 67213 – – 1.00 0.185 13 80
Spiral-Point Gun — P, B — 2FL 67293 67296 – – – – 1.00 0.185 13 80
Lightning Service 5/16" – – – – 65823 65824 65835 1.13 0.318 13 80
80
67297
13
0.185
67294
1.00
Spiral-Point Gun — P, B — 3FL
–
Hand — T, P, B — 2FL
0.318
80
65833
13
1.13
65834
Hand — T, P, B — 3FL
65279
67231
65255
80
0.318
13
1.13
Hand — T, P, B — 4FL
65239
–
13
80
1.13
0.318
64571
Spiral-Point Gun — P, B — 2FL
Spiral-Point Gun — P, B — 3FL
Small Shank – 65229 65247 – 1.13 0.318 13 80
Hand — T, P, B — 2FL 67226 67229 – – 1.13 0.240 13 80
Hand — T, P, B — 3FL 67227 67230 – – 1.13 0.240 13 80
Hand — T, P, B — 4FL 67228 – – – 1.13 0.240 13 80
Spiral-Point Gun — P, B — 2FL 67317 67320 – – 1.25 0.240 13 80
Spiral-Point Gun — P, B — 3FL 67318 67321 – – 1.25 0.240 13 80
(continued)
