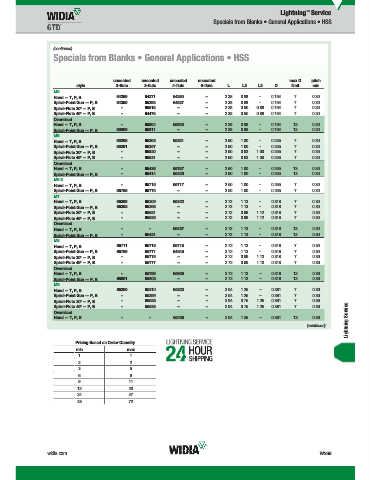

Page 1967 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • General Applications • HSS

(continued)
Specials from Blanks • General Applications • HSS

uncoated uncoated uncoated uncoated max D pitch
style 2-fl ute 3-fl ute 4-fl ute 6-fl ute L L3 L2 D limit min
M5
Hand — T, P, B 64259 64271 64280 – 2.38 0.88 – 0.194 7 0.30
Spiral-Point Gun — P, B 64359 65395 64827 – 2.38 0.88 – 0.194 7 0.30
Spiral-Flute 30º — P, B – 65518 – – 2.38 0.50 0.88 0.194 7 0.30
Spiral-Flute 49º — P, B – 64478 – – 2.38 0.50 0.88 0.194 7 0.30
Oversized
Hand — T, P, B – 65804 65806 – 2.38 0.88 – 0.194 13 0.30
Spiral-Point Gun — P, B 65809 65811 – – 2.38 0.88 – 0.194 13 0.30
M6
Hand — T, P, B 65298 65308 65321 – 2.50 1.00 – 0.255 7 0.30
Spiral-Point Gun — P, B 65391 65397 – – 2.50 1.00 – 0.255 7 0.30
Spiral-Flute 30º — P, B – 65520 – – 2.50 0.63 1.00 0.255 7 0.30
Spiral-Flute 49º — P, B – 65531 – – 2.50 0.63 1.00 0.255 7 0.30
Oversized
Hand — T, P, B – 65436 65787 – 2.50 1.00 – 0.255 13 0.30
Spiral-Point Gun — P, B – 65414 65420 – 2.50 1.00 – 0.255 13 0.30
M6.3
Hand — T, P, B – 65715 65717 – 2.50 1.00 – 0.255 7 0.30
Spiral-Point Gun — P, B 65768 65770 – – 2.50 1.00 – 0.255 7 0.30
M7
Hand — T, P, B 65299 65309 65322 – 2.72 1.13 – 0.318 7 0.30
Spiral-Point Gun — P, B 65392 65398 – – 2.72 1.13 – 0.318 7 0.30
Spiral-Flute 30º — P, B – 65521 – – 2.72 0.69 1.12 0.318 7 0.30
Spiral-Flute 49º — P, B – 65532 – – 2.72 0.69 1.12 0.318 7 0.30
Oversized
Hand — T, P, B – – 65437 – 2.72 1.13 – 0.318 13 0.30
Spiral-Point Gun — P, B – 65421 – – 2.72 1.13 – 0.318 13 0.30
M8
Hand — T, P, B 65711 65716 65718 – 2.72 1.13 – 0.318 7 0.30
Spiral-Point Gun — P, B 65769 65771 64845 – 2.72 1.13 – 0.318 7 0.30
Spiral-Flute 30º — P, B – 65775 – – 2.72 0.69 1.13 0.318 7 0.30
Spiral-Flute 49º — P, B – 65777 – – 2.72 0.69 1.13 0.318 7 0.30
Oversized
Hand — T, P, B – 65789 65800 – 2.72 1.13 – 0.318 13 0.30
Spiral-Point Gun — P, B 65801 65802 – – 2.72 1.13 – 0.318 13 0.30
M9
Hand — T, P, B 65300 65310 65323 – 2.94 1.25 – 0.381 7 0.30
Spiral-Point Gun — P, B – 65399 – – 2.94 1.25 – 0.381 7 0.30
Spiral-Flute 30º — P, B – 65522 – – 2.94 0.75 1.25 0.381 7 0.30
Lightning Service
Spiral-Flute 49º — P, B – 65533 – – 2.94 0.75 1.25 0.381 7 0.30
Oversized
Hand — T, P, B – – 65438 – 2.94 1.25 – 0.381 13 0.30
(continued)

Pricing Based on Order Quantity
min max
1 1
2 2
3 5
6 8
9 11
12 23
24 47
48 72
