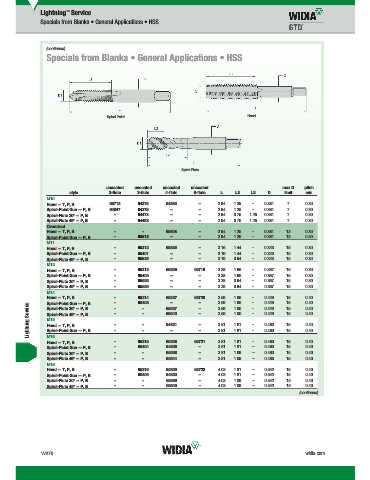

Page 1968 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • General Applications • HSS

(continued)
Specials from Blanks • General Applications • HSS

Spiral Point Hand

Spiral Flute

uncoated uncoated uncoated uncoated max D pitch
style 2-fl ute 3-fl ute 4-fl ute 6-fl ute L L3 L2 D limit min
M10
Hand — T, P, B 65712 64275 64285 – 2.94 1.25 – 0.381 7 0.30
Spiral-Point Gun — P, B 64847 64379 – – 2.94 1.25 – 0.381 7 0.30
Spiral-Flute 30º — P, B – 64473 – – 2.94 0.75 1.25 0.381 7 0.30
Spiral-Flute 49º — P, B – 64483 – – 2.94 0.75 1.25 0.381 7 0.30
Oversized
Hand — T, P, B – – 65808 – 2.94 1.25 – 0.381 13 0.30
Spiral-Point Gun — P, B – 65813 – – 2.94 1.25 – 0.381 13 0.30
M11
Hand — T, P, B – 65312 65325 – 3.16 1.44 – 0.323 15 0.30
Spiral-Point Gun — P, B – 65401 – – 3.16 1.44 – 0.323 15 0.30
Spiral-Flute 49º — P, B – 65535 – – 3.16 0.94 – 0.323 15 0.30
M12
Hand — T, P, B – 65313 65326 65719 3.38 1.66 – 0.367 15 0.30
Spiral-Point Gun — P, B – 65402 – – 3.38 1.66 – 0.367 15 0.30
Spiral-Flute 30º — P, B – 65525 – – 3.38 0.94 – 0.367 15 0.30
Spiral-Flute 49º — P, B – 65536 – – 3.38 0.94 – 0.367 15 0.30
M14
Hand — T, P, B – – 65314 65327 65720 3.59 1.66 – – 0.429 15 0.40
Lightning Service Spiral-Flute 30º — P, B – – – – – – 65537 – – – 3.59 1.00 – – – 0.429 15 0.40
1.66
0.40
–
0.429
65403
15
3.59
–
Spiral-Point Gun — P, B
3.59
15
0.40
65543
1.00
0.429
Spiral-Flute 49º — P, B
M15
1.81
0.40
3.81
64831
0.480
15
Hand — T, P, B
–
–
–
Spiral-Point Gun — P, B
M16
0.40
3.81
0.480
15
1.81
Hand — T, P, B – – 65315 65328 65721 3.81 1.81 – – 0.480 15 0.40
Spiral-Point Gun — P, B – 65404 64828 – 3.81 1.81 – 0.480 15 0.40
Spiral-Flute 30º — P, B – – 65538 – 3.81 1.09 – 0.480 15 0.40
Spiral-Flute 49º — P, B – – 65544 – 3.81 1.09 – 0.480 15 0.40
M18
Hand — T, P, B – 65316 65329 65722 4.03 1.81 – 0.542 15 0.40
Spiral-Point Gun — P, B – 65405 64833 – 4.03 1.81 – 0.542 15 0.40
Spiral-Flute 30º — P, B – – 65539 – 4.03 1.09 – 0.542 15 0.40
Spiral-Flute 49º — P, B – – 65545 – 4.03 1.09 – 0.542 15 0.40
(continued)
