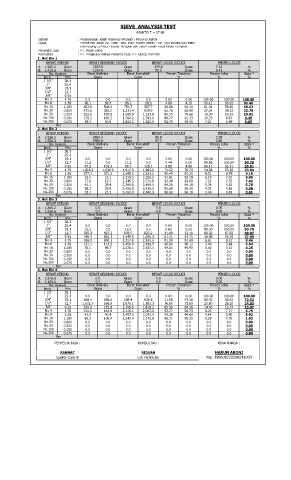

SIEVE ANALYSIS TEST
AASHTO T ~ 27.88
Satker : Pelaksanaan Jalan Nasional Wilayah I Provinsi Jambi
Paket : Preservasi Jalan Sp. Tuan - Bts. Kab. Muaro Jambi - Sp. Tiga Batara Gas Plant
: (Pematang Lumut) - Kuala Tungkal dan Jalan Dalam Kota Kuala Tungkal.
Penyedia Jasa : PT. Abun Sendi
Konsultan : PT. Progresia Aditya Pratama KSO. PT. Guteg Harindo
1. Hot Bin 1
BERAT KERING BERAT SESUDAH DICUCI BERAT LOLOS DICUCI PERSEN LOLOS
A. 1,965.2 Gram 1824.6 Gram 140.6 Gram 7.15 %
B. 1,415.8 Gram 1324.8 Gram 91.0 Gram 6.43 %
No. Ayakan Berat Individu Berat Komulatif Persen Tertahan Persen Lolos Rata ²
Inch Mm Gram Gram % % %
1 1/2" 38.1
1" 25.4
3/4" 19.1
1/2" 12.7
3/8" 9.50
No.4 4.75 0.0 0.0 0.0 0.0 0.00 0.00 100.00 100.00 100.00
No.8 2.36 96.1 59.3 96.1 59.3 4.89 4.19 95.11 95.81 95.46
No.16 1.180 663.6 508.4 759.7 567.7 38.66 40.10 61.34 59.90 60.62
No.30 0.600 473.6 362.2 1,233.4 929.9 62.76 65.68 37.24 34.32 35.78
No.50 0.300 352.6 197.9 1,585.9 1,127.8 80.70 79.66 19.30 20.34 19.82
No.100 0.150 178.2 165.2 1,764.2 1,293.1 89.77 91.33 10.23 8.67 9.45
No.200 0.075 59.3 30.9 1,823.5 1,323.9 92.79 93.51 7.21 6.49 6.85
Pan
2. Hot Bin 2
BERAT KERING BERAT SESUDAH DICUCI BERAT LOLOS DICUCI PERSEN LOLOS
A. 2,536.2 Gram 2450.4 Gram 85.8 Gram 3.38 %
B. 2,558.0 Gram 2460.8 Gram 97.2 Gram 3.80 %
No. Ayakan Berat Individu Berat Komulatif Persen Tertahan Persen Lolos Rata ²
Inch Mm Gram Gram % % %
1 1/2" 38.1
1" 25.4
3/4" 19.1 0.0 0.0 0.0 0.0 0.00 0.00 100.00 100.00 100.00
1/2" 12.7 11.2 0.0 11.2 0.0 0.44 0.00 99.56 100.00 99.78
3/8" 9.50 87.5 125.1 98.7 125.1 3.89 4.89 96.11 95.11 95.61
No.4 4.75 1,819.2 1,836.9 1,917.9 1,962.0 75.62 76.70 24.38 23.30 23.84
No.8 2.36 377.1 371.2 2,295.0 2,333.2 90.49 91.21 9.51 8.79 9.15
No.16 1.180 33.5 25.1 2,328.5 2,358.2 91.81 92.19 8.19 7.81 8.00
No.30 0.600 17.0 12.5 2,345.5 2,370.8 92.48 92.68 7.52 7.32 7.42
No.50 0.300 45.1 38.4 2,390.6 2,409.1 94.26 94.18 5.74 5.82 5.78
No.100 0.150 36.3 29.9 2,426.9 2,439.1 95.69 95.35 4.31 4.65 4.48
No.200 0.075 23.1 21.2 2,450.0 2,460.3 96.60 96.18 3.40 3.82 3.61
Pan
3. Hot Bin 3
BERAT KERING BERAT SESUDAH DICUCI BERAT LOLOS DICUCI PERSEN LOLOS
A. 1,849.2 Gram 0.0 Gram 0.0 Gram 0.00 %
B. 1,918.6 Gram 0.0 Gram 0.0 Gram 0.00 %
No. Ayakan Berat Individu Berat Komulatif Persen Tertahan Persen Lolos Rata ²
Inch Mm Gram Gram % % %
1 1/2" 38.1
1" 25.4 0.0 0.0 0.0 0.0 0.00 0.00 100.00 100.00 100.00
3/4" 19.1 15.2 0.0 15.2 0.0 0.60 0.00 99.40 100.00 99.70
1/2" 12.7 788.3 823.2 803.5 823.2 31.68 32.18 68.32 67.82 68.07
3/8" 9.50 746.4 832.1 1,549.9 1,655.3 61.11 64.71 38.89 35.29 37.09
No.4 4.75 768.0 690.1 2,317.8 2,345.4 91.39 91.69 8.61 8.31 8.46
No.8 2.36 132.1 113.3 2,450.0 2,458.7 96.60 96.12 3.40 3.88 3.64
No.16 1.180 76.1 96.7 2,526.1 2,555.4 99.60 99.90 0.40 0.10 0.25
No.30 0.600 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
No.50 0.300 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
No.100 0.150 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
No.200 0.075 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
Pan
4. Hot Bin 4
BERAT KERING BERAT SESUDAH DICUCI BERAT LOLOS DICUCI PERSEN LOLOS
A. 2,576.6 Gram 0.0 Gram 0.0 Gram 0.00 %
B. 2,159.0 Gram 0.0 Gram 0.0 Gram 0.00 %
No. Ayakan Berat Individu Berat Komulatif Persen Tertahan Persen Lolos Rata ²
Inch Mm Gram Gram % % %
1 1/2" 38.1
1" 25.4 0.0 0.0 0.0 0.0 0.00 0.00 100.00 100.00 100.00
3/4" 19.1 298.4 936.6 298.4 936.6 11.58 43.38 88.42 56.62 72.52
1/2" 12.7 1,672.7 656.8 1,971.1 1,593.3 76.50 73.80 23.50 26.20 24.85
3/8" 9.50 234.5 225.8 2,205.6 1,819.2 85.60 84.26 14.40 15.74 15.07
No.4 4.75 210.5 182.9 2,416.1 2,002.0 93.77 92.73 6.23 7.27 6.75
No.8 2.36 41.0 40.4 2,457.0 2,042.4 95.36 94.60 4.64 5.40 5.02
No.16 1.180 86.3 100.4 2,543.4 2,142.8 98.71 99.25 1.29 0.75 1.02
No.30 0.600 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
No.50 0.300 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
No.100 0.150 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
No.200 0.075 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.00
Pan
PENYEDIA JASA : KONSULTAN : BINA MARGA :
RAHMAT RIDUAN HARUN ARONI
Quality Control Lab Technician Nip. 196608222006041003
