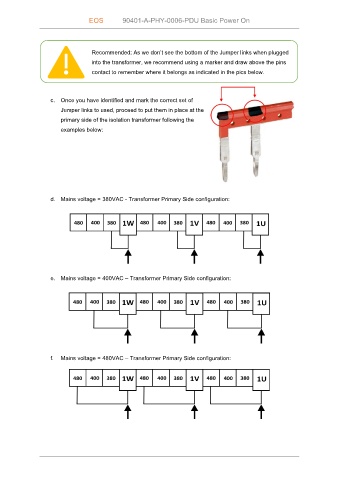

EOS 90401-A-PHY-0006-PDU Basic Power On
Recommended: As we don’t see the bottom of the Jumper links when plugged
into the transformer, we recommend using a marker and draw above the pins
contact to remember where it belongs as indicated in the pics below.
c. Once you have identified and mark the correct set of
Jumper links to used, proceed to put them in place at the
primary side of the isolation transformer following the
examples below:
d. Mains voltage = 380VAC - Transformer Primary Side configuration:
e. Mains voltage = 400VAC – Transformer Primary Side configuration:
f. Mains voltage = 480VAC – Transformer Primary Side configuration:
