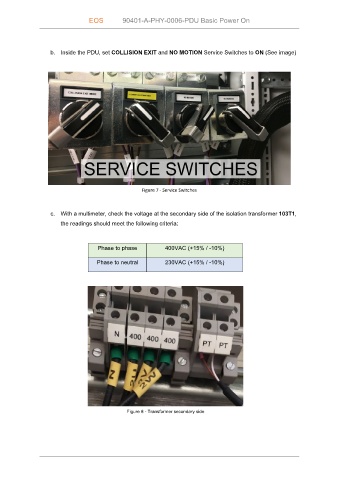

EOS 90401-A-PHY-0006-PDU Basic Power On

b. Inside the PDU, set COLLISION EXIT and NO MOTION Service Switches to ON (See image)

Figure 7 - Service Switches

c. With a multimeter, check the voltage at the secondary side of the isolation transformer 103T1,
the readings should meet the following criteria:

Phase to phase 400VAC (+15% / -10%)

Phase to neutral 230VAC (+15% / -10%)

Figure 8 - Transformer secondary side
