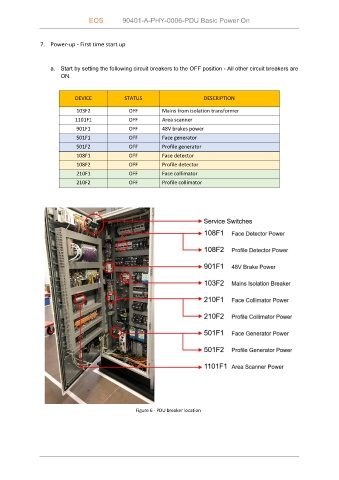

EOS 90401-A-PHY-0006-PDU Basic Power On
7. Power-up - First time start up
a. Start by setting the following circuit breakers to the OFF position - All other circuit breakers are
ON.
DEVICE STATUS DESCRIPTION
103F2 OFF Mains from isolation transformer
1101F1 OFF Area scanner
901F1 OFF 48V brakes power
501F1 OFF Face generator
501F2 OFF Profile generator
108F1 OFF Face detector
108F2 OFF Profile detector
210F1 OFF Face collimator
210F2 OFF Profile collimator
Figure 6 - PDU breaker location
