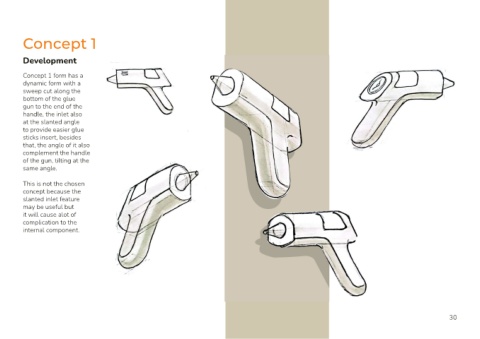

Concept 1
Development
Concept 1 form has a
dynamic form with a
sweep cut along the
bottom of the glue
gun to the end of the
handle, the inlet also
at the slanted angle
to provide easier glue
sticks insert, besides
that, the angle of it also
complement the handle
of the gun, tilting at the
same angle.
This is not the chosen
concept because the
slanted inlet feature
may be useful but
it will cause alot of
complication to the
internal component.
