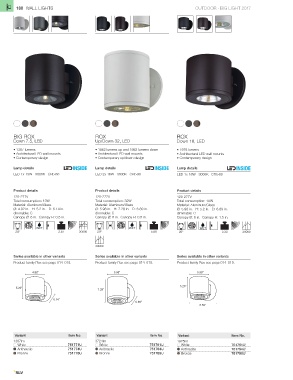

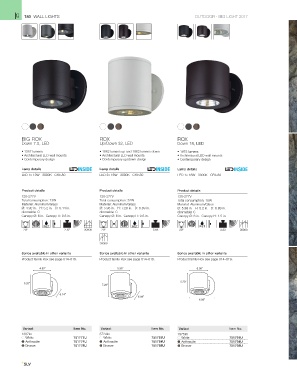

180 WALL LIGHTS OUTDOOR · BIG LIGHT 2017

BIG ROX ROX ROX
Down 7.5, LED Up/Down 32, LED Down 18, LED
• 1387 lumens • 1862 lumens up and 1862 lumens down • 1975 lumens
• Architectural LED wall mounts • Architectural LED wall mounts • Architectural LED wall mounts
• Contemporary design • Contemporary up/down design • Contemporary design
Lamp details Lamp details Lamp details
LED 1x 13W 3000K CRI>80 LED 2x 16W 3000K CRI>80 LED 1x 18W 3000K CRI>80

Product details Product details Product details
120-277V 120-277V 120-277V
Total consumption: 13W Total consumption: 32W Total consumption: 18W
Material: Aluminum/Glass Material: Aluminum/Glass Material: Aluminum/Glass
Ø: 4.92 in. H: 5.2 in. D: 6.14 in. Ø: 5.98 in. H: 7.28 in. D: 6.89 in. Ø: 5.98 in. H: 5.2 in. D: 6.89 in.
dimmable: C dimmable: C dimmable: C
Canopy Ø: 6 in. Canopy H: 0.5 in. Canopy Ø: 6 in. Canopy H: 0.5 in. Canopy Ø: 6 in. Canopy H: 1.5 in.

24° 2.87 30000 20° 5.68 20° 3.33 30000

30000

Series available in other variants Series available in other variants Series available in other variants
Product family Rox see page 014–019. Product family Rox see page 014–019. Product family Rox see page 014–019.
4.92” 5.98” 5.98”

5.20” 5.20”
7.28”
6.14”
6.89”
6.89”

Variant Item No. Variant Item No. Variant Item No.
1387lm 3724lm 1975lm
White 751771U White 751781U White 751791U
Anthracite 751774U Anthracite 751784U Anthracite 751794U
Bronze 751778U Bronze 751788U Bronze 751798U
