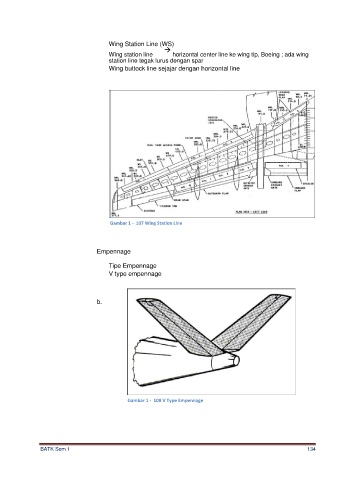

Wing Station Line (WS)
Wing station line → horizontal center line ke wing tip, Boeing ; ada wing
station line tegak lurus dengan spar
Wing buttock line sejajar dengan horizontal line
Gambar 1 - 107 Wing Station Line
Empennage
Tipe Empennage
V type empennage
b.
Gambar 1 - 108 V Type Empennage
