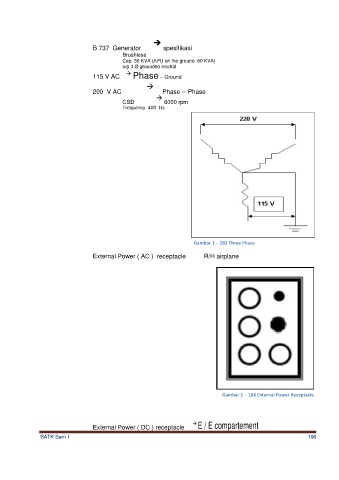

B 737 Generator ➔ spesifikasi
Brushless
Cap. 50 KVA (APU on the ground 60 KVA)
o/p 3 Ø grounded neutral
→
115 V AC Phase – Ground
200 V AC → Phase -- Phase
CSD → 6000 rpm
Frequency 400 Hz
Gambar 1 - 183 Three Phase
External Power ( AC ) receptacle R/H airplane
Gambar 1 - 184 External Power Receptacle
→ E / E compartement
External Power ( DC ) receptacle
