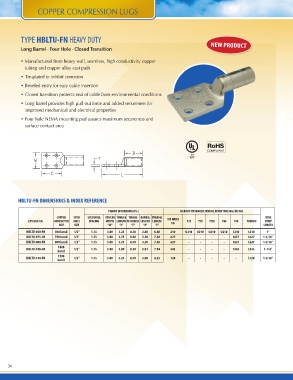

COPPER COMPRESSION LUGS NEW PRODUCT

TYPE HBLTU-FN HEAVY DUTY

Long Barrel - Four Hole - Closed Transition

• Manufactured from heavy wall, seamless, high conductivity copper
tubing and copper alloy cast pads
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion
• Closed transition protects end of cable from environmental conditions
• Long barrel provides high pull out force and added secureness for
improved mechanical and electrical properties
• Four hole NEMA mounting pad assures maximum secureness and
surface contact area

HBLTU-FN DIMENSIONS & INDEX REFERENCE

FIGURE DIMENSIONS (IN.) BURNDY HYDRAULIC INSTALLATION TOOLING / DIE NO.
TONGUE TONGUE TONGUE BARREL OVERALL
CATALOG NO. COPPER STUD STUD HOLE WIDTH LENGTH THICKNESS LENGTH LENGTH DIE INDEX Y35 Y39 Y750 Y46 Y48 Y60BHU WIRE
CONDUCTOR HOLE SPACING NO. STRIP
HBLTU-050-FN SIZE “W” “C” “T” “B” “L” LENGTH
HBLTU-075-FN SIZE 1/2” 1.75 210 U210 U210 U210 U210 C210 L210 1”
HBLTU-080-FN 1/2” 1.75 3.00 3.25 0.38 2.88 6.88 1-3/16”
HBLTU-100-FN 500 kcmil 1/2” 1.75 3.00 3.25 0.50 3.50 7.38 627 - - - - C627 L627 1-3/16”
750 kcmil 1/2” 1.75 3.00 3.25 0.50 3.50 7.38 1-1/4”
HBLTU-150-FN 800 kcmil 627 - - - - C627 L627
1/2” 3.00 3.00 0.50 3.81 7.94 1-5/16”
1000 345 - - - - C345 L345
kcmil
1500 1.75 3.00 3.25 0.50 3.88 8.25 728 --- - - L728
kcmil

34
