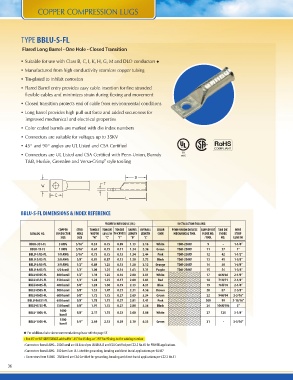

Page 36 - PUC Compression Connectors FLIPBOOK_080415

COPPER COMPRESSION LUGS

TYPE BBLU-S-FL

Flared Long Barrel - One Hole - Closed Transition

• Suitable for use with Class B, C, I, K, H, G, M and DLO conductors
• Manufactured from high conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Flared Barrel entry provides easy cable insertion for fine stranded
flexible cables and minimizes strain during flexing and movement
• Closed transition protects end of cable from environmental conditions
• Long barrel provides high pull out force and added secureness for
improved mechanical and electrical properties
• Color coded barrels are marked with die index numbers
• Connectors are suitable for voltages up to 35KV
• 45° and 90° angles are UL Listed and CSA Certified
• Connectors are UL Listed and CSA Certified with Penn-Union, Burndy
T&B, Huskie, Greenlee and Versa-Crimp® style tooling

BBLU-S-FL DIMENSIONS & INDEX REFERENCE

FIGURE DIMENSIONS (IN.) INSTALLATION TOOLING

COPPER STUD TONGUE TONGUE TONGUE BARREL OVERALL COLOR PENN-UNION DIELESS BURNDY DIE T&B DIE WIRE
CATALOG NO. CONDUCTOR HOLE WIDTH LENGTH THICKNESS LENGTH LENGTH CODE MECHANICAL TOOL INDEX NO. INDEX STRIP
SIZE /TOOL NO. LENGTH
BBLU-3S1-FL SIZE “W” “C” “T” “B” “L” White
BBLU-1S-FL 5/16” Green TDM-250XF 9 - 1-1/4”
BBLU-1/0S-FL 3 AWG 5/16” 0.53 0.75 0.09 1.13 2.16 Pink TDM-250XF 11 37 1”
BBLU-2/0S-FL 1 AWG 5/16” 0.67 0.75 0.11 1.34 2.36 Black TDM-250XF 12 42 1-1/2”
BBLU-3/0S-FL 1/0 AWG 3/8” 0.73 0.75 0.13 1.34 2.44 Orange TDM-250XF 13 45 1-5/8”
BBLU-4/0S-FL 2/0 AWG 1/2” 0.81 0.87 0.13 1.50 2.72 Purple TDM-250XF 14 50 1-5/8”
BBLU-030S-FL 3/0 AWG 1/2” 0.89 1.25 0.13 1.50 3.12 White TDM-250XF 15 54 1-3/4”
BBLU-035S-FL 4/0 kcmil 1/2” 1.00 1.25 0.14 1.63 3.31 Red 17 66H/66 2-1/8”
BBLU-040S-FL 300 kcmil 1/2” 1.19 1.25 0.16 2.00 3.81 Blue 18 71H/71 2-1/8”
BBLU-050S-FL 350 kcmil 5/8” 1.28 1.25 0.17 2.00 3.84 Brown 19 76H/76 2-1/4”
BBLU-060S-FL 400 kcmil 5/8” 1.39 1.50 0.19 2.13 4.31 Green 20 87 2-3/8”
BBLU-065S1-FL 500 kcmil 5/8” 1.53 1.47 0.21 2.31 4.56 Pink 22 94H/94 2-3/16”
BBLU-075S-FL 600 kcmil 5/8” 1.72 1.75 0.27 2.69 5.34 Black 300 99 2-15/16”
650 kcmil 5/8” 1.78 1.75 0.27 2.81 5.41 24 106H/106 3”
BBLU-100S-FL 750 kcmil 1.91 1.75 0.27 2.88 5.56 White
1000 5/8” 27 125 3-1/8”
BBLU-150S-FL kcmil 2.17 1.75 0.33 3.00 5.88
1500 3/4”
kcmil 2.69 2.13 0.39 3.19 6.53 Green 31 - 3-5/16”

For additional wire size recommendations please refer to page 55
• For 45° or 90° BENT TANGS add suffix“-45”for 45 deg. or“-90”for 90 deg. to the catalog number
• Connectors from 8 AWG - 2000 kcmil are UL Listed per UL486A-B and CSA Certified per C22.2 No.65 for POWER applications
• Connectors from 8 AWG - 500 kcmil are UL Listed for grounding, bonding and direct burial applications per UL467
• Connectors from 8 AWG - 250 kcmil are CSA Certified for grounding, bonding and direct burial applications per C22.2 No.41
