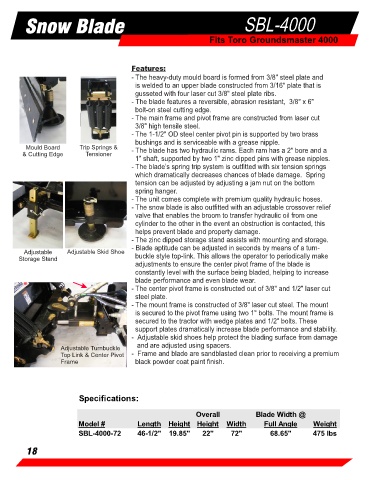

Page 18 - Toro Product Guide_2020.cdr

Snow Blade SBL-4000

Fits Toro Groundsmaster 4000

Features:
- The heavy-duty mould board is formed from 3/8" steel plate and
is welded to an upper blade constructed from 3/16" plate that is
gusseted with four laser cut 3/8" steel plate ribs.
- The blade features a reversible, abrasion resistant, 3/8" x 6"
bolt-on steel cutting edge.
- The main frame and pivot frame are constructed from laser cut
3/8" high tensile steel.
- The 1-1/2" OD steel center pivot pin is supported by two brass
bushings and is serviceable with a grease nipple.
Mould Board Trip Springs & - The blade has two hydraulic rams. Each ram has a 2" bore and a
& Cutting Edge Tensioner
1" shaft, supported by two 1" zinc dipped pins with grease nipples.
- The blade’s spring trip system is outfitted with six tension springs
which dramatically decreases chances of blade damage. Spring
tension can be adjusted by adjusting a jam nut on the bottom
spring hanger.
- The unit comes complete with premium quality hydraulic hoses.
- The snow blade is also outfitted with an adjustable crossover relief
valve that enables the broom to transfer hydraulic oil from one
cylinder to the other in the event an obstruction is contacted, this
helps prevent blade and property damage.
- The zinc dipped storage stand assists with mounting and storage.
- Blade aptitude can be adjusted in seconds by means of a turn-
Adjustable Adjustable Skid Shoe
Storage Stand buckle style top-link. This allows the operator to periodically make
adjustments to ensure the center pivot frame of the blade is
constantly level with the surface being bladed, helping to increase
blade performance and even blade wear.
- The center pivot frame is constructed out of 3/8" and 1/2" laser cut
steel plate.
- The mount frame is constructed of 3/8" laser cut steel. The mount
is secured to the pivot frame using two 1" bolts. The mount frame is
secured to the tractor with wedge plates and 1/2" bolts. These
support plates dramatically increase blade performance and stability.
- Adjustable skid shoes help protect the blading surface from damage
and are adjusted using spacers.
Adjustable Turnbuckle
Top Link & Center Pivot - Frame and blade are sandblasted clean prior to receiving a premium
Frame black powder coat paint finish.

Specifications:

Overall Blade Width @
Model # Length Height Height Width Full Angle Weight
SBL-4000-72 46-1/2" 19.85" 22" 72" 68.65" 475 lbs
