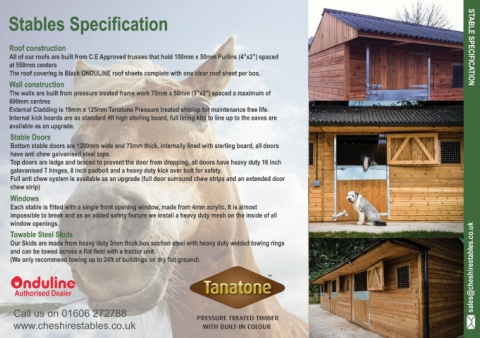

Stables Specification TBE

SA L
Roof construction
All of our roofs are built from C.E Approved trusses that hold 100mm x 50mm Purlins (4”x2”) spaced PC F
at 558mm centers
The roof covering is Black ONDULINE roof sheets complete with one clear roof sheet per box. I AIN
SEICT
Wall construction O
The walls are built from pressure treated frame work 75mm x 50mm (3”x2”) spaced a maximum of
600mm centres
External Cladding is 19mm x 125mm Tanatone Pressure treated shiplap for maintenance free life.
Internal kick boards are as standard 4ft high sterling board, full lining kits to line up to the eaves are
available as an upgrade.
Stable Doors
Bottom stable doors are 1200mm wide and 73mm thick, internally lined with sterling board, all doors
have anti chew galvanised steel tops.
Top doors are ledge and braced to prevent the door from dropping, all doors have heavy duty 16 inch
galavanised T hinges, 8 inch padbolt and a heavy duty kick over bolt for safety.
Full anti chew system is available as an upgrade (full door surround chew strips and an extended door
Full anti chew system is available as an upgrade (full door surround chew strips and an extended door
chew strip)
Windows
Each stable is fitted with a single front opening window, made from 4mm acrylic. It is almost
impossible to break and as an added safety feature we install a heavy duty mesh on the inside of all
window openings. k u
Towable Steel Skids c.
Our Skids are made from heavy duty 3mm thick box section steel with heavy duty welded towing rings e.
and can be towed across a flat field with a tractor unit. al
(We only recommend towing up to 24ft of buildings on dry flat ground). hsis b so e@ cehet r
