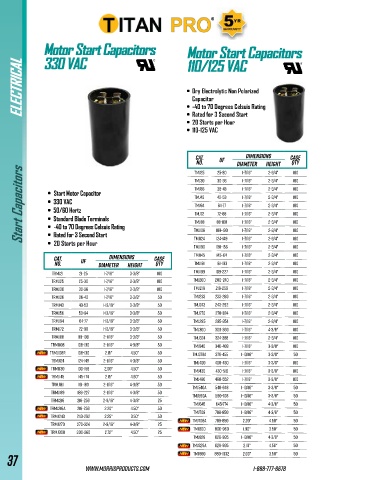

Page 40 - 2025 MORRIS Diversitech HVAC Catalog

Motor Start Capacitors Motor Start Capacitors
Motor Start Capacitors

Motor Start Capacitors
ELECTRICAL ELECTRICAL • Dry Electrolytic Non Polarized
330 VAC
330 VAC
110/125 VAC110/125 VAC

Capacitor
• -40 to 70 Degrees Celsuis Rating
• Rated for 3 Second Start
• 20 Starts per Hour
• 110-125 VAC

Dimensions
CAT. 25-30 DiameteR Height Case
uf
Qty
NO.
Start Capacitors • Start Motor Capacitor TMJ108 108-130 1-7/16" 2-3/4" 100
TMJ25
1-7/16"
100
2-3/4"
TMJ30
30-36
2-3/4"
1-7/16"
TMJ36
100
36-43
1-7/16"
TMJ43
43-53
2-3/4"
100
• 330 VAC
TMJ64
64-77
100
2-3/4"
1-7/16"
• 50/60 Hertz
TMJ72
1-7/16"
72-88
100
2-3/4"
• Standard Blade Terminals
2-3/4"
1-7/16"
88-108
100
TMJ88
• -40 to 70 Degrees Celsuis Rating
2-3/4"
100
1-7/16"
• Rated for 3 Second Start
124-149
• 20 Starts per Hour
100
1-7/16"
2-3/4"
TMJ130
2-3/4"
1-7/16"
100
145-174
TMJ145
CAT. uf Dimensions Case TMJ124 130-156 1-7/16" 2-3/4" 100
NO. Diameter Height Qty TMJ161 161-193 1-7/16" 2-3/4" 100
TRMJ21 21-25 1-7/16" 3-3/8" 100 TMJ189 189-227 1-7/16" 2-3/4" 100
TRMJ25 25-30 1-7/16" 3-3/8" 100 TMJ200 200-240 1-7/16" 2-3/4" 100
TRMJ30 30-36 1-7/16" 3-3/8" 100 TMJ216 216-259 1-7/16" 2-3/4" 100
TRMJ36 36-43 1-7/16" 3-3/8" 50 TMJ233 233-280 1-7/16" 2-3/4" 100
TRMJ43 43-53 1-13/16" 3-3/8" 50 TMJ243 243-292 1-7/16" 2-3/4" 100
TRMJ56 53-64 1-13/16" 3-3/8" 50 TMJ270 270-324 1-7/16" 2-3/4" 100
TRMJ64 64-77 1-13/16" 3-3/8" 50 TMJ295 295-354 1-7/16" 2-3/4" 100
TRMJ72 72-88 1-13/16" 3-3/8" 50 TMJ300 300-360 1-7/16" 4-3/8" 100
TRMJ88 88-108 2-1/16" 3-3/8" 50 TMJ324 324-388 1-7/16" 2-3/4" 100
TRMJ108 108-130 2-1/16" 4-3/8" 50 TMJ340 340-408 1-7/16" 3-3/8" 100
TRMJ108R 108-130 2.15" 4.50" 50 TMJ378A 378-455 1-13/16" 3-3/8" 50
TRMJ124 124-149 2-1/16" 4-3/8" 50 TMJ400 400-480 1-7/16" 3-3/8" 100
TRMJ130 130-158 2.00" 4.50" 50 TMJ430 430-516 1-7/16" 3-3/8" 100
TRMJ145 145-174 2.15" 4.60" 50 TMJ460 460-552 1-7/16" 3-3/8" 100
TRMJ161 161-193 2-1/16" 4-3/8" 50 TMJ540A 540-648 1-13/16" 3-3/8" 50
TRMJ189 189-227 2-1/16" 4-3/8" 50 TMJ590A 590-708 1-13/16" 3-3/8" 50
TRMJ216 216-259 2-9/16" 4-3/8" 25 TMJ645 645-774 1-13/16" 4-3/8" 50
TRMJ216A 216-259 2.20" 4.50" 50
TRMJ243 243-292 2.25" 3.50" 50 TMJ708 708-850 1-13/16" 4-3/8" 50
TRMJ270 270-324 2-9/16" 4-3/8" 25 TMJ708A 708-850 2.20" 4.50" 50
TRMJ300 300-360 2.72" 4.50" 25 TMJ800 800-960 1.90" 3.50" 50
TMJ829 829-995 1-13/16" 4-3/8" 50
TMJ829A 829-995 2.10" 4.50" 50
37 TMJ860 860-1032 2.00" 3.50" 50
www.morrisproducts.com 1-888-777-6678
